5-46
Confidential

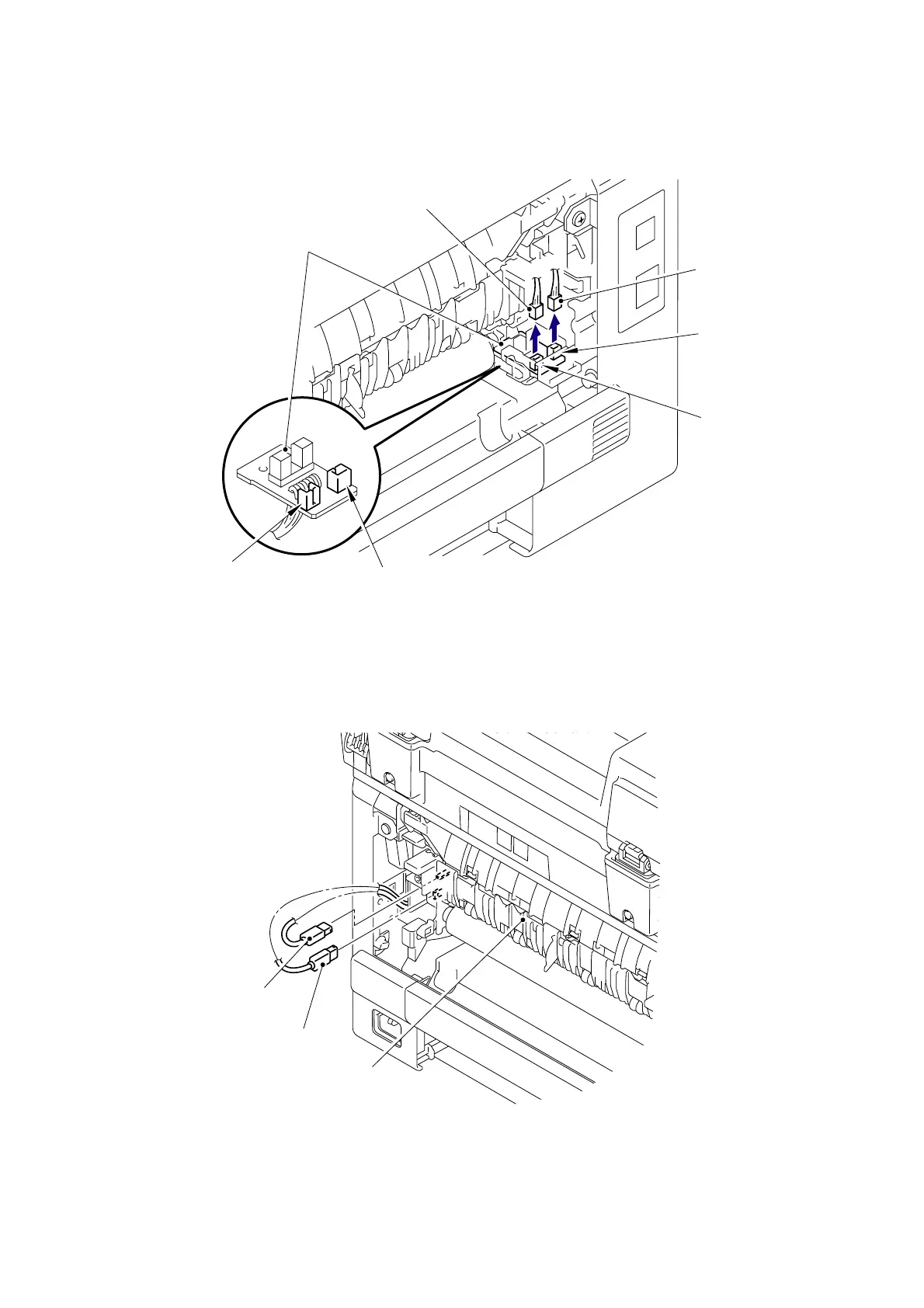

(3) Disconnect the two Connectors (CN1, CN3) from the Eject front sensor PCB ASSY.
Fig. 5-22
(4) Disconnect the two Electrode terminals from the Fuser unit.
Fig. 5-23
Connector
CN1
Eject front sensor PCB ASSY
CN1
CN3
Connector
CN3
<Back side>
Electrode terminal (large)
Electrode terminal (small)
Fuser unit
<Back side>
