Brother MFC-9010CN - Drive Frame ASSY

5-71
Confidential
8.22 Drive Frame ASSY

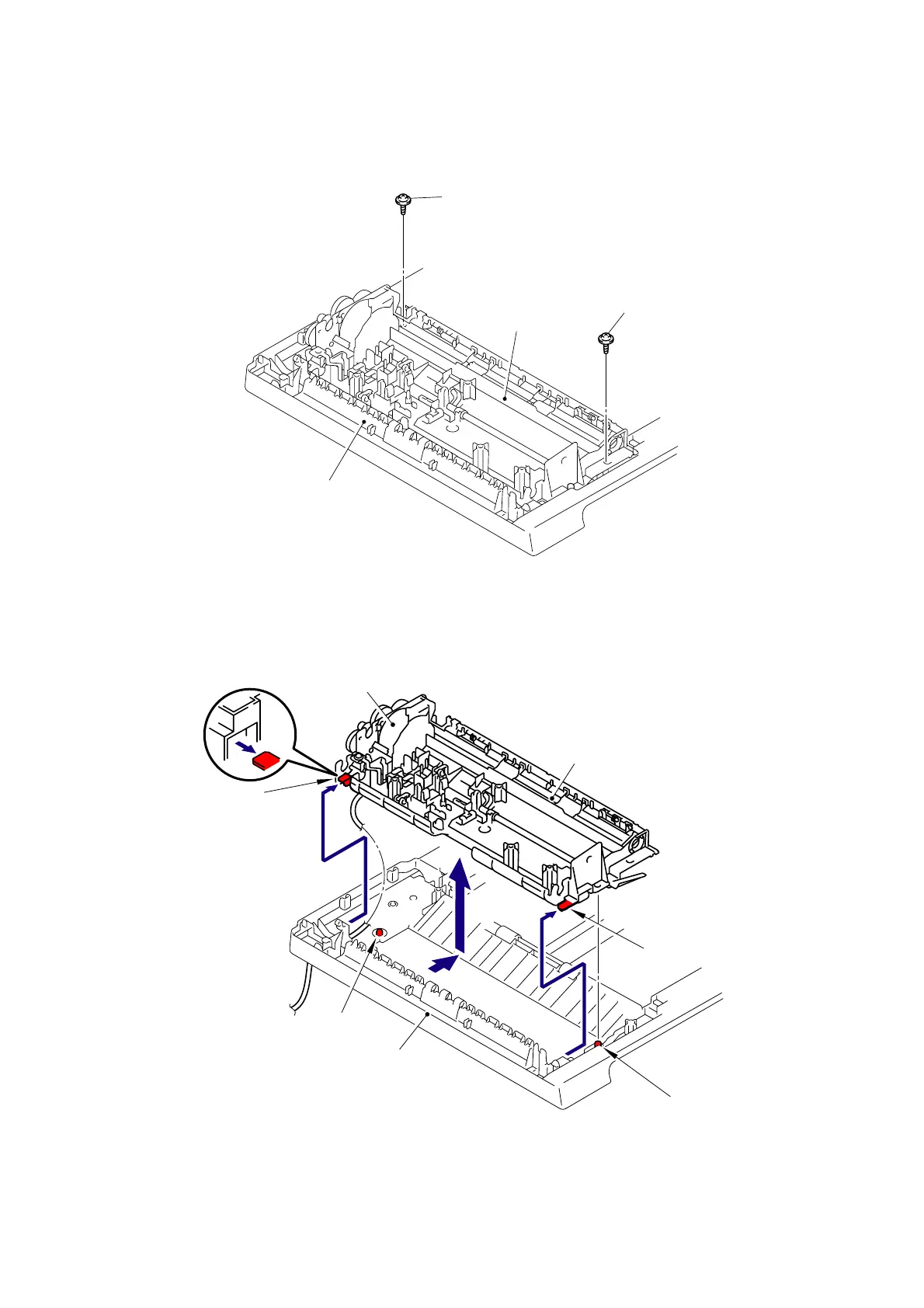

(1) Remove the two Taptite cup B M3x10 screws from the Lower document chute ASSY.
Fig. 5-57
(2) Release the two Hooks to remove the Lower document chute ASSY from the Document
cover sub ASSY
.
Fig. 5-58
Lower document
Taptite cup B M3x10
Taptite cup B M3x10
Document cover sub ASSY
chute ASSY
Hook
Document cover sub ASSY
Lower document chute ASSY
Hook
Rib
Rib
ADF motor
2a
2b
