5-149
Confidential
8.62 Paper Feed Motor ASSY

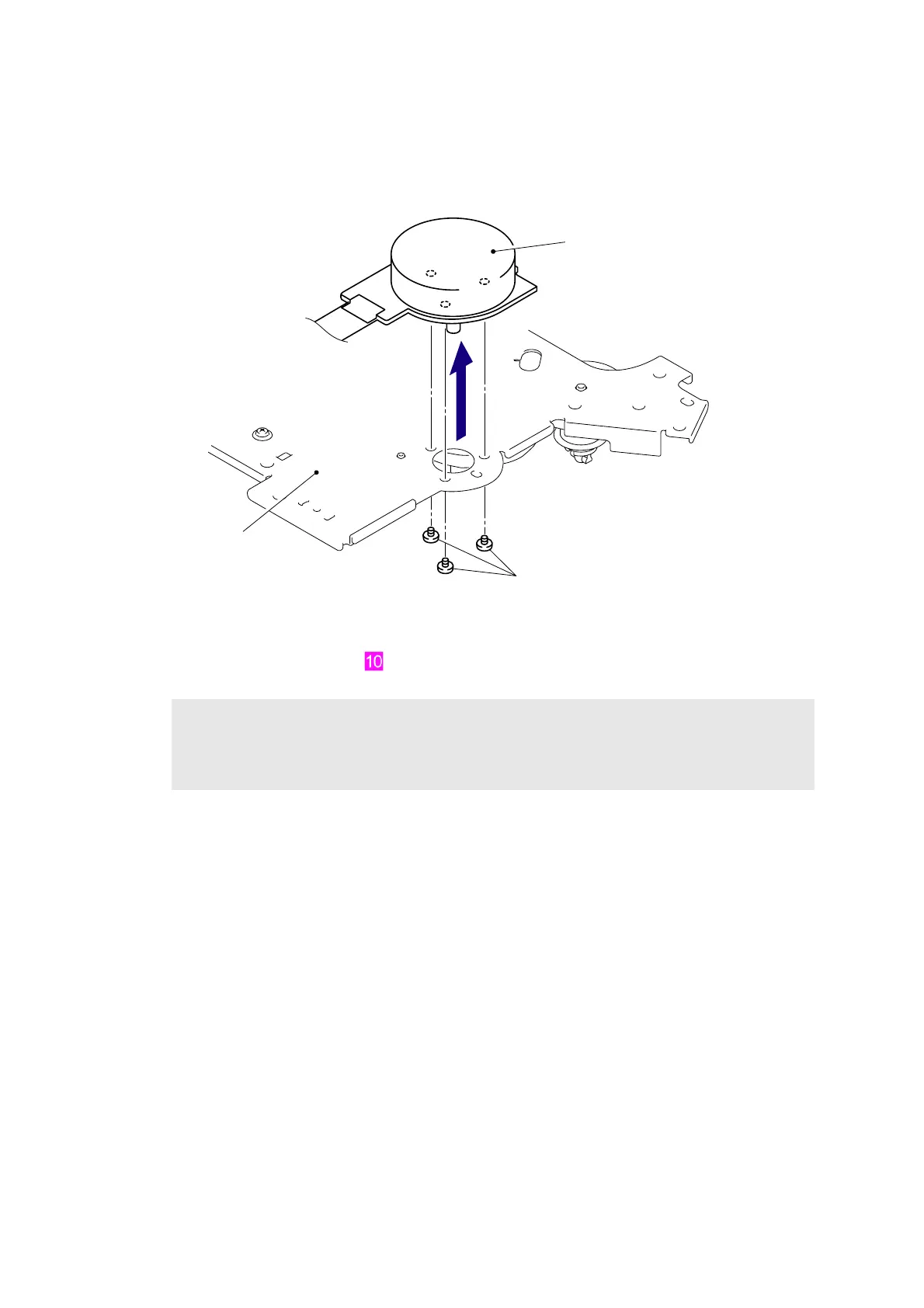

(1) Remove the three Screw bind M3x4, and then remove the Paper feed motor ASSY from
the Drum develop drive unit.
Fig. 5-178
Harness routing: Refer to “ Paper Feed Motor ASSY, Drum Drive Motor.”
Assembling Note:
When replacing the Paper feed motor ASSY with a new one, fold the FFC first in
accordance with the “How to Fold FFC of Paper Feed Motor ASSY” figure in the next page,
and then assemble the Paper feed motor ASSY.
Screw bind M3x4
Drum develop drive unit
Paper feed motor ASSY
To Next Page
