5-176
Confidential

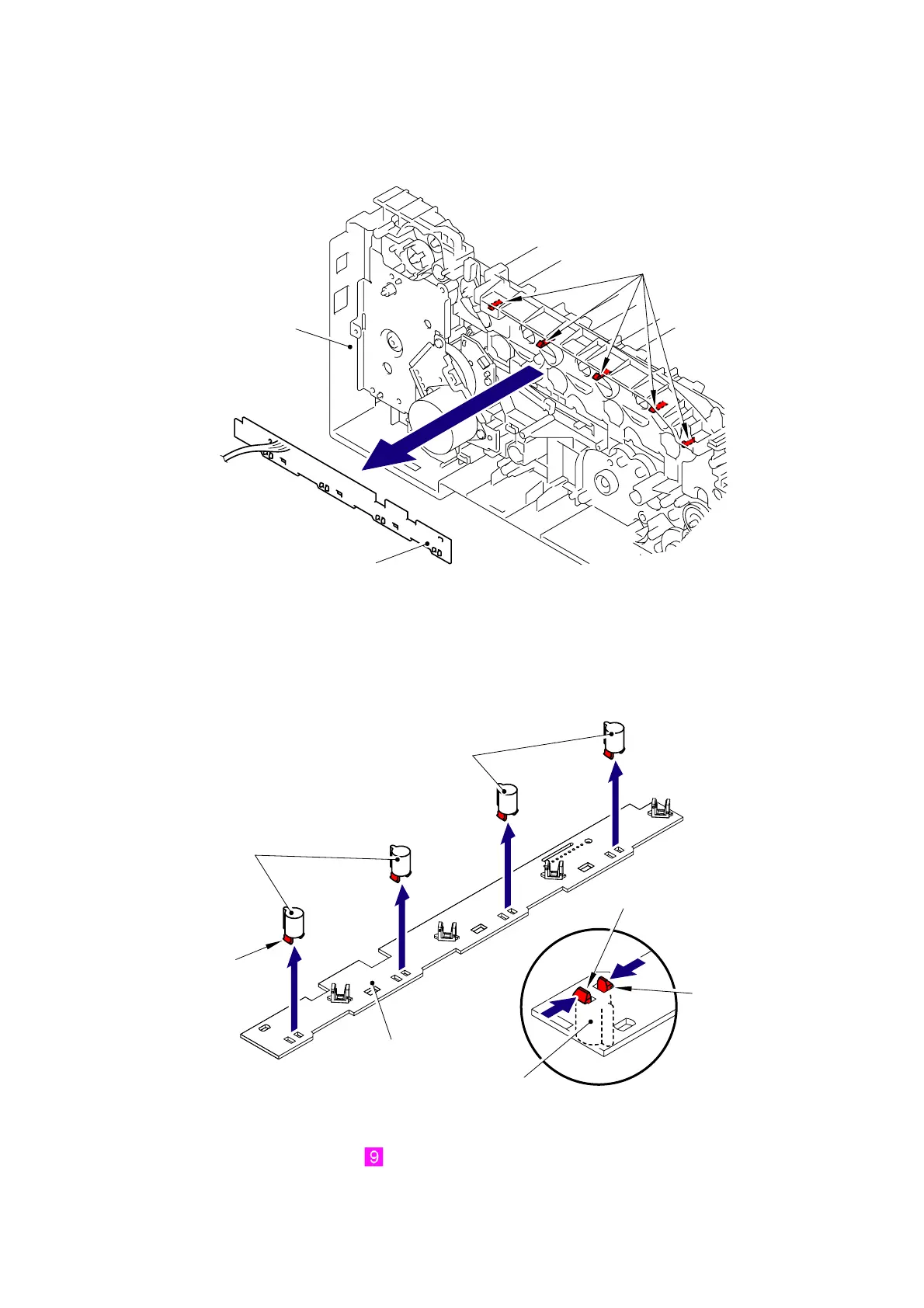

8.77 Toner/New Sensor PCB ASSY
(1) Release the five Hooks to remove the Toner/New sensor PCB ASSY from the Side frame L.
Fig. 5-223
(2) Release the Hooks of the PT sensor holder to remove the four PT sensor holder from the
Toner/New sensor PCB ASSY.
Fig. 5-224
Harness routing: Refer to “ Toner/New Sensor PCB ASSY.”
Hook
Side frame L
Toner/New sensor PCB ASSY
PT sensor holder
Toner/New sensor PCB ASSY
PT sensor holder
Hook
Hook
Hook
PT sensor holder
