Brother MFC-9010CN Service Manual

5-8
Confidential

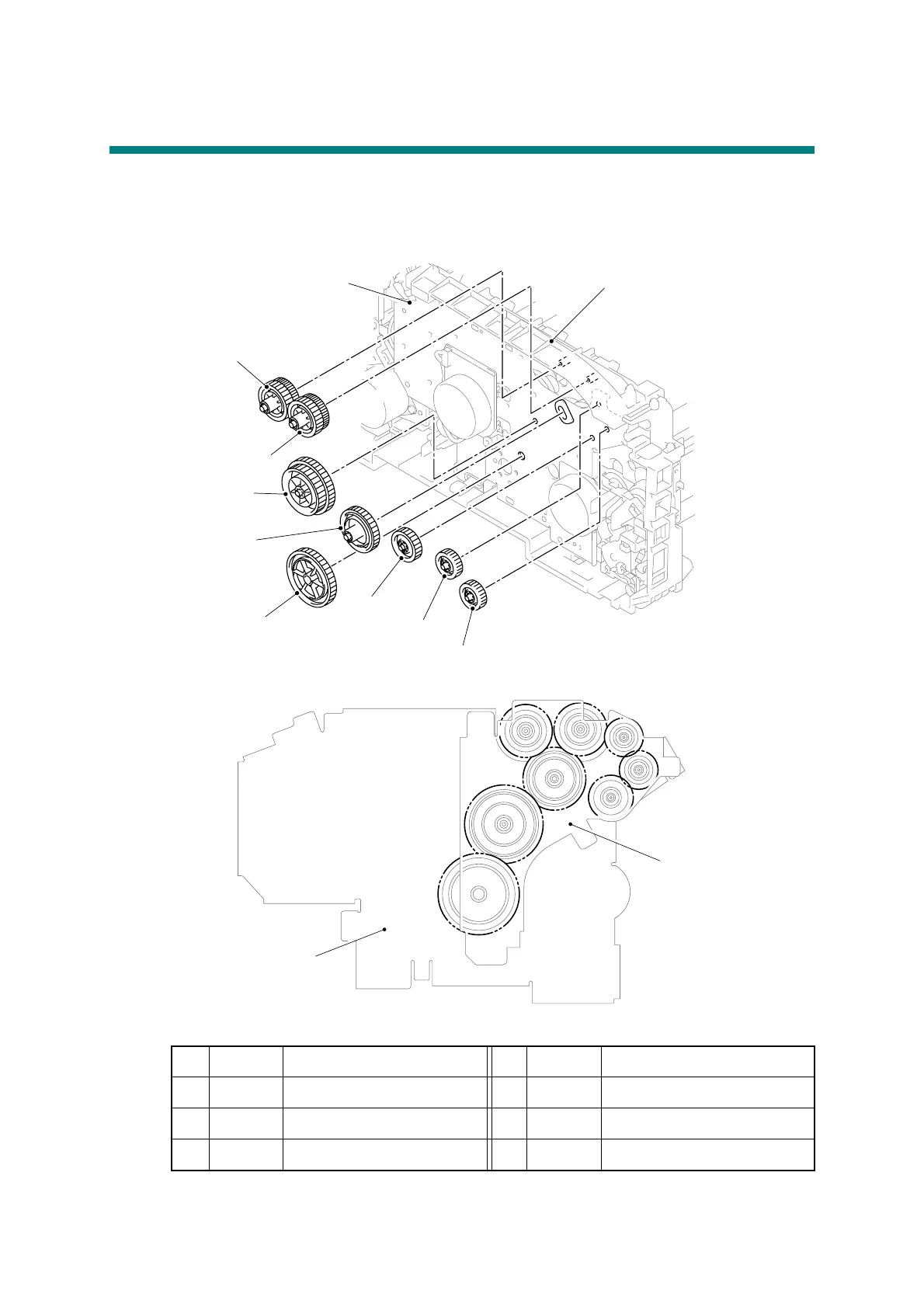

5. OVERVIEW OF GEARS
When ordering spare parts, please refer to Parts reference list.
■ Develop drive
<Development view>
<Layout view>
<Name of gears>
* These parts are subject to change without notice.
1 LU5128 Idle gear 100 5 LU5126 Idle gear 30
2 LU5127 Gear 63/85 6 LU5126 Idle gear 30
3 LU5124 Pendulum gear 50 7 LU5143 Gear 42/39
4 LU5125 Idle gear 35 8 LU5143 Gear 42/39
1
2
8
7
3
4
6
5
Side frame L
Drum develop drive unit
<Left side>
1
2
3
4
5
6
87
1
2
3
4
5
6
87
Develop drive
Drum develop drive unit
plate ASSY
