Brother MFC-9010CN Service Manual

5-9
Confidential

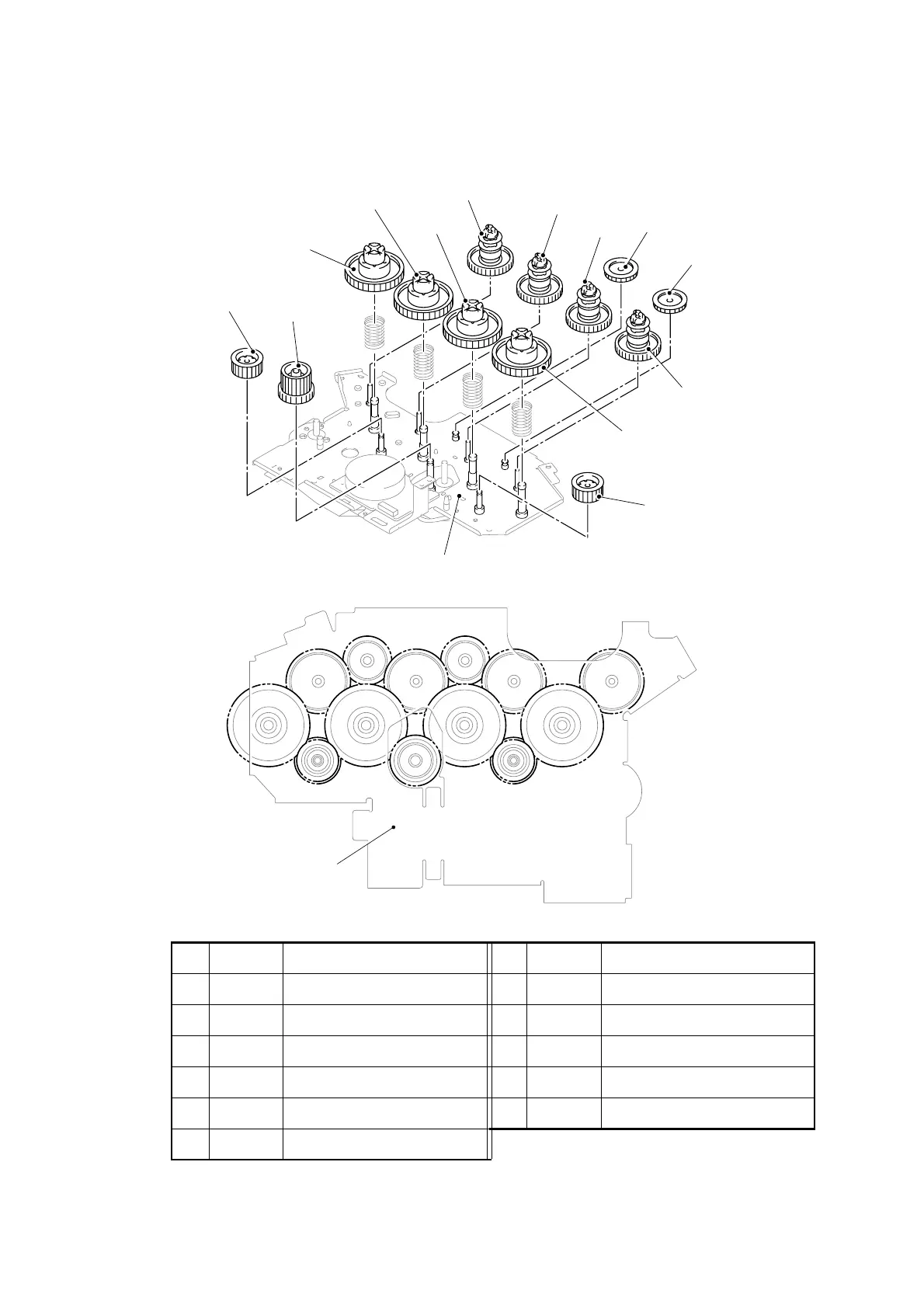

■ Drum develop drive
<Development view>
<Layout view>
<Name of gears>
* These parts are subject to change without notice.
9 LU5139 Drum drive gear ASSY 16 LU5136 Coupling idle gear 35
10 LU5132 Develop coupling gear 17 LU6157 Drum drive gear 60
11 LU5136 Coupling idle gear 35 18 LU5132 Develop coupling gear
12 LU6158 Drum idle gear 30 19 LU6158 Drum idle gear 30
13 LU6157 Drum drive gear 60 20 LU6157 Drum drive gear 60
14 LU5132 Develop coupling gear 21 LU5132 Develop coupling gear
15 LU6159 Drum drive gear 62/30
20
16
11
10
9
12
14
18
21
13
17
15
19
Drum develop drive unit
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
9
10
11
12
13
14
15
16
17
18
19
20
21
Drum develop drive unit
