5-200
Confidential
8.88 Belt Cleaner Spring

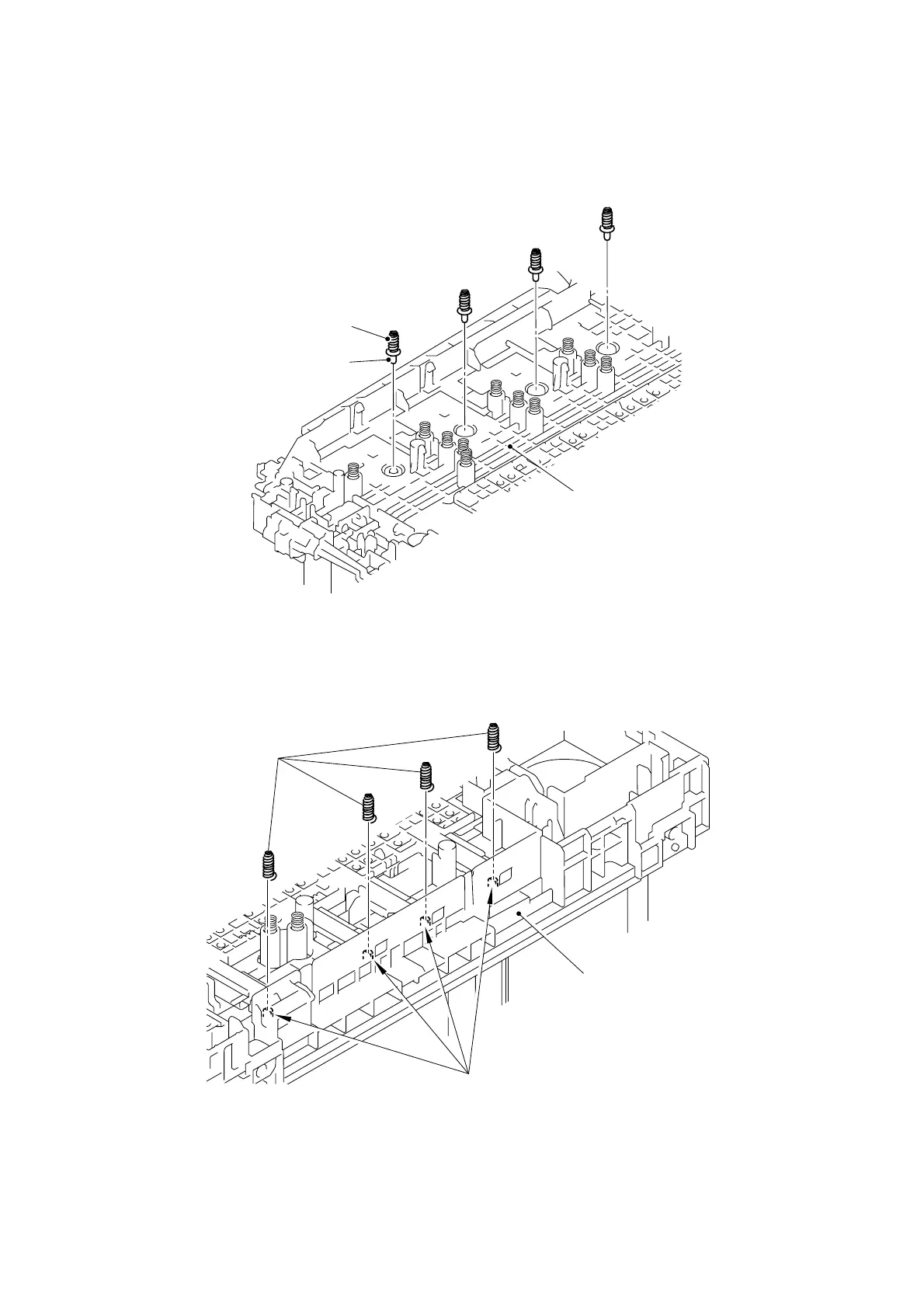

(1) Remove the four Electrode head 1 and four Electrode spring 1 from the Side frame R.
Fig. 5-265
(2) Remove the four Electrode spring 2 from the Side frame R.
Fig. 5-266
Side frame R
Electrode head 1
Electrode spring 1
Side frame R
Electrode spring 2
Boss
