5-39
Confidential
8.5 Back Cover/Back Cover Stopper L/R
(1) Open the Back cover.

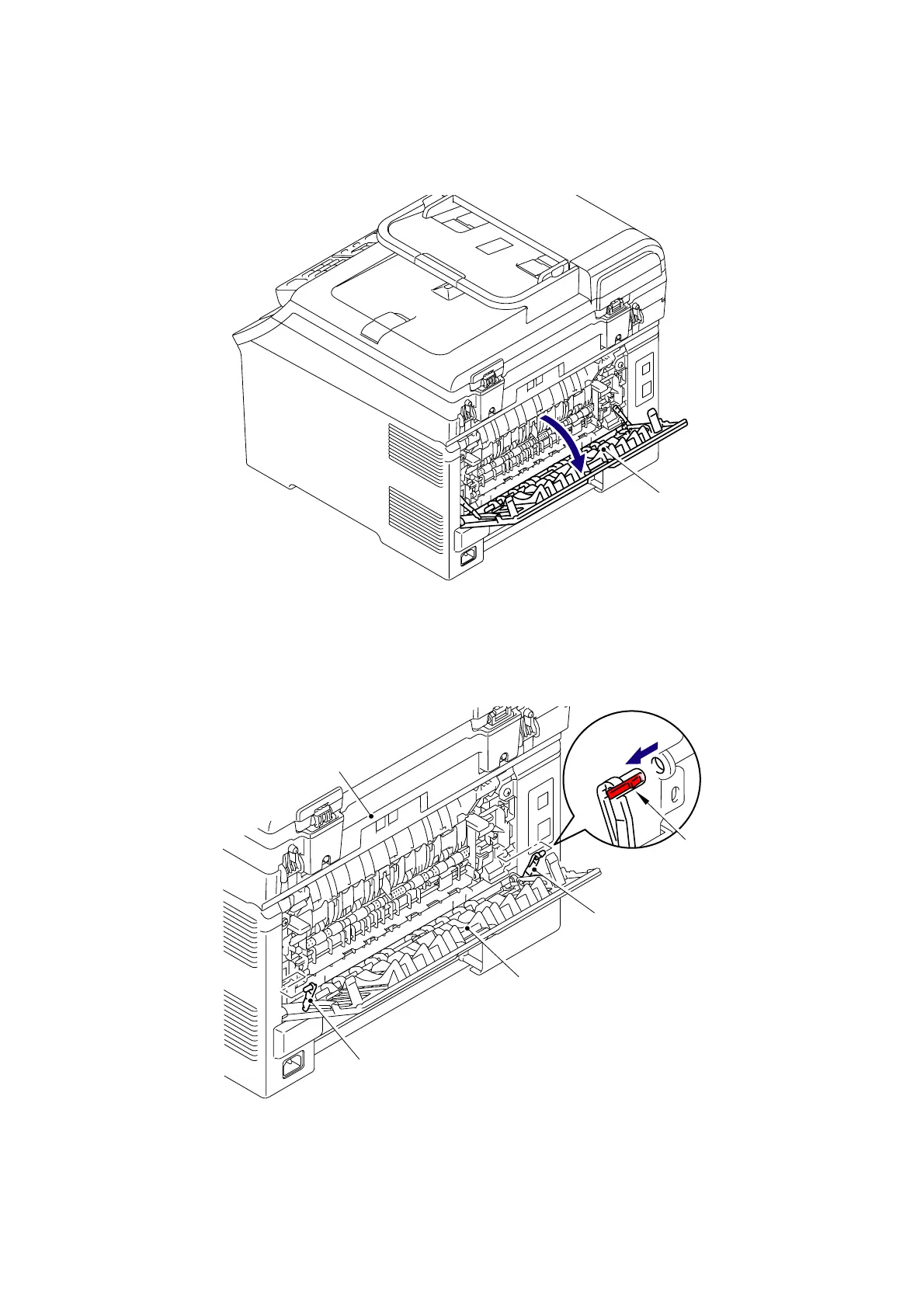

Fig. 5-9
(2) Release the Hook to remove the Back cover stopper L and R from the Main body.
Fig. 5-10
Back cover
<Back side>
Hook
Back cover stopper L
Back cover stopper R
Back cover
Main body
<Back side>
