Brother MFC-9010CN Service Manual

5-87
Confidential

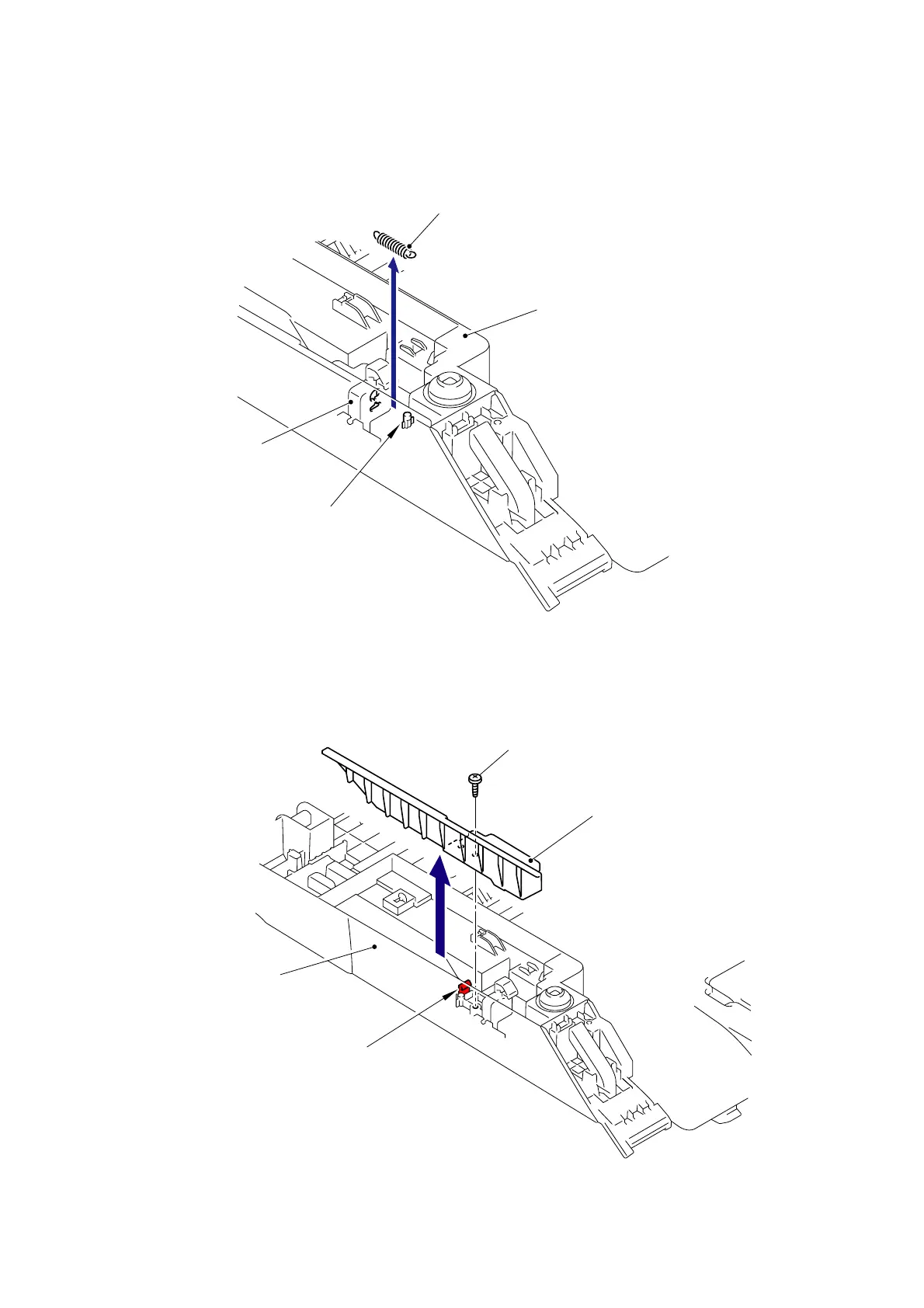

8.34 FB Lock Lever L/R
(1) Remove the FB lock spring from the spring hook and FB lock lever L of the joint cover sub
ASSY.
Fig. 5-81
(2) Remove the Taptite bind B M4x12 screw from the Blind cover L.
(3) Release the Hook to remove the Blind cover L from the Joint cover sub ASSY.
Fig. 5-82
FB lock lever L
Joint cover sub ASSY
Spring hook
FB lock spring
Joint cover sub ASSY
Hook
Taptite bind B M4x12
Blind cover L
