Brother MFC-9010CN Service Manual

5-179
Confidential
8.80 LV Fan ASSY

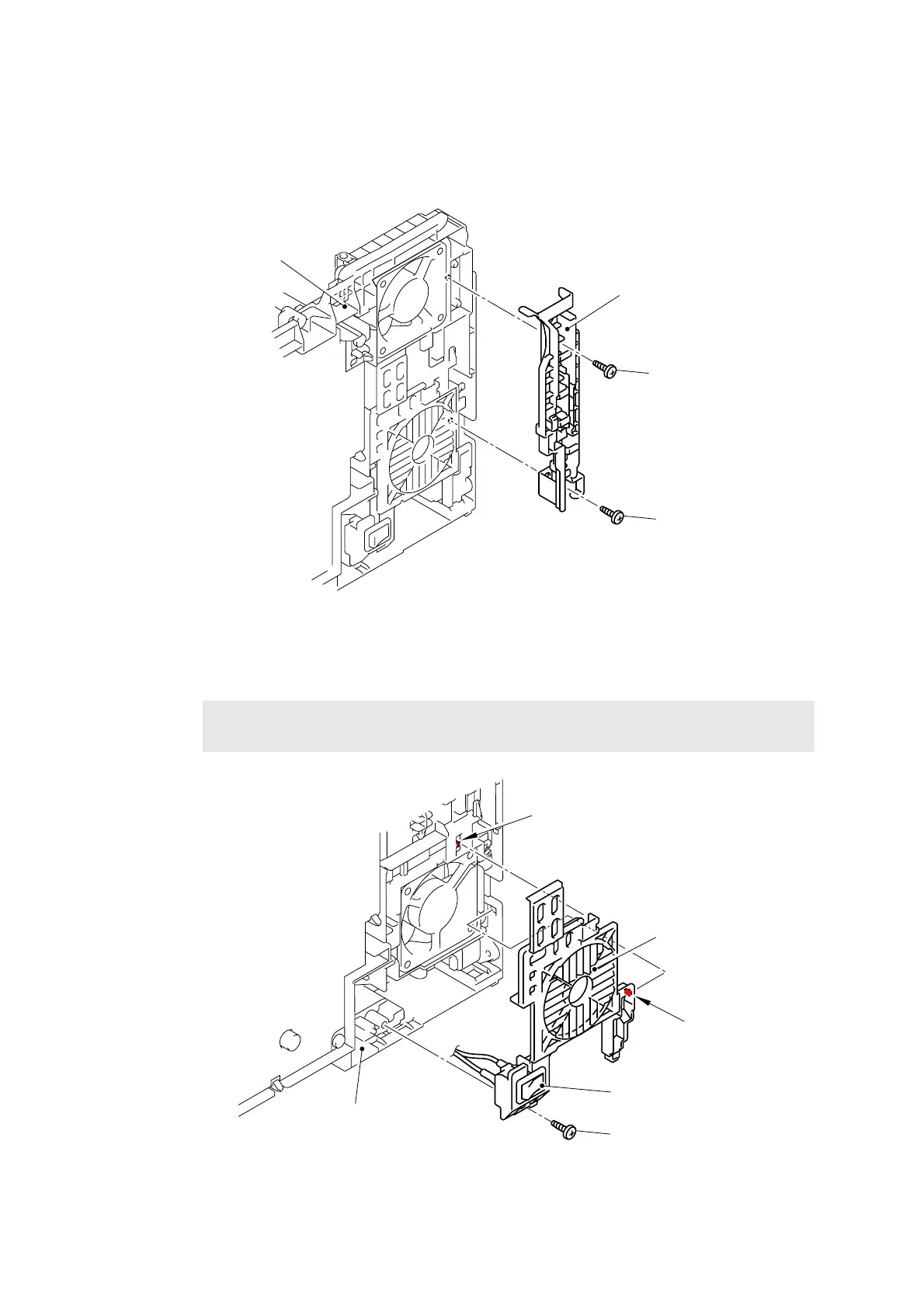

(1) Remove the two Taptite bind B M4x12 screws, and then remove the NCU harness holder
from the Side frame R.
Fig. 5-227
(2) Remove the Taptite bind B M4x12 screw from the Safety louver.
(3) Release the two Hooks to remove the Safety louver from the Side frame R.
Fig. 5-228
Note:
Do not pull the Safety louver strongly because it has the Power supply switch on it.
Taptite bind B M4x12
Side frame R
NCU harness holder
Taptite bind B M4x12
<Right side>
Taptite bind B M4x12
Hook
Side frame R
Hook
Safety louver
<Right side>
Power supply switch
