8.44 Joint Cover Sub ASSY

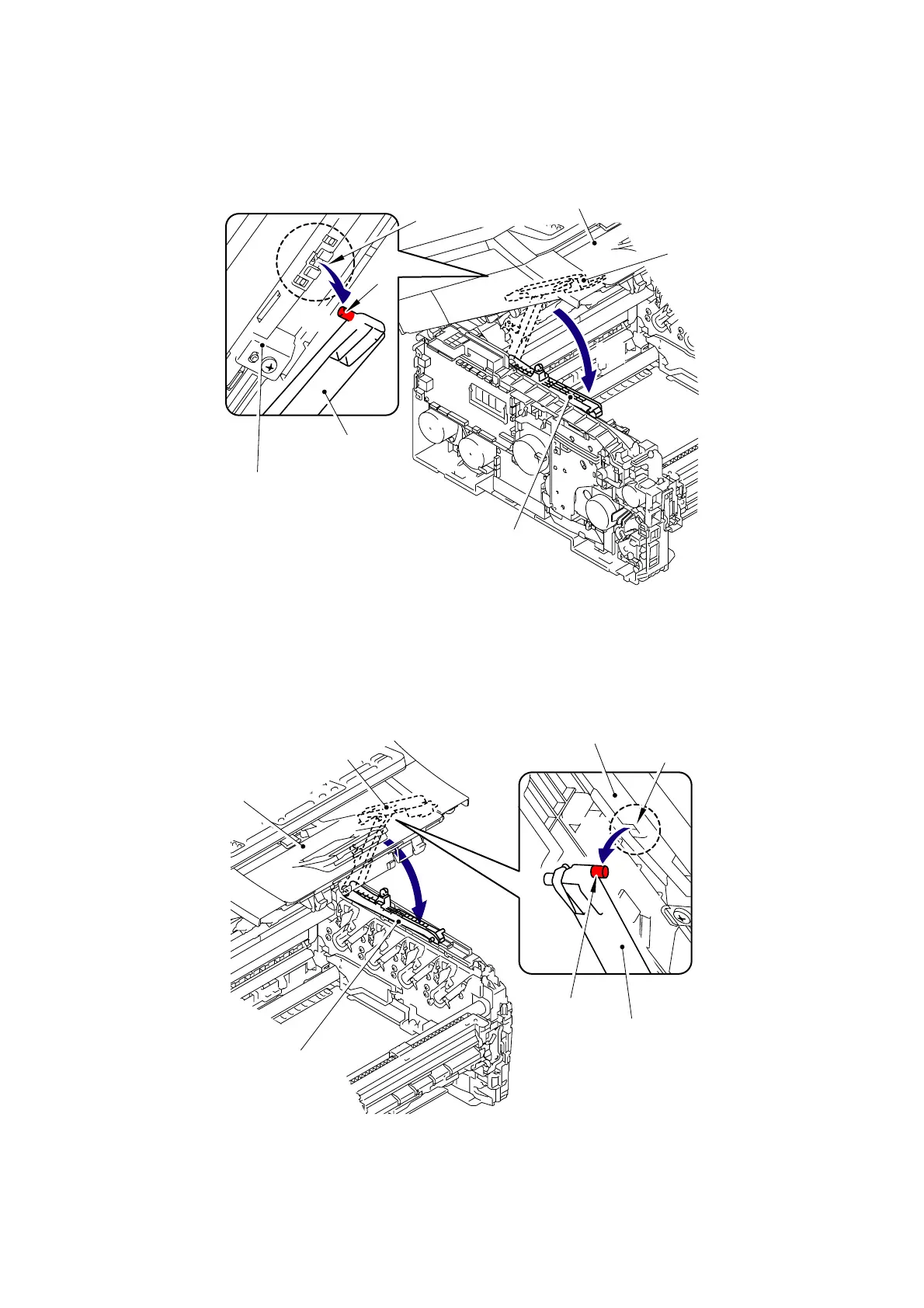

(1) Remove the Pin of the Top cover arm L from the “A” of the Arm guide L.
Fig. 5-116
(2) Remove the Pin of the Top cover arm R from the “B” of the Arm guide R.
Fig. 5-117
Arm guide L
"A"
Top cover arm L
Pin
Top cover arm L
Arm guide L
<Left side>
Joint cover sub ASSY
1b
1a
1a
Arm guide R
"B"
Top cover arm R
Pin
Joint cover sub ASSY
Arm guide R
Top cover arm R
<Right side>
2a
2b
