Brother MFC-9010CN Service Manual

5-199
Confidential
8.87 Develop Release Sensor PCB ASSY

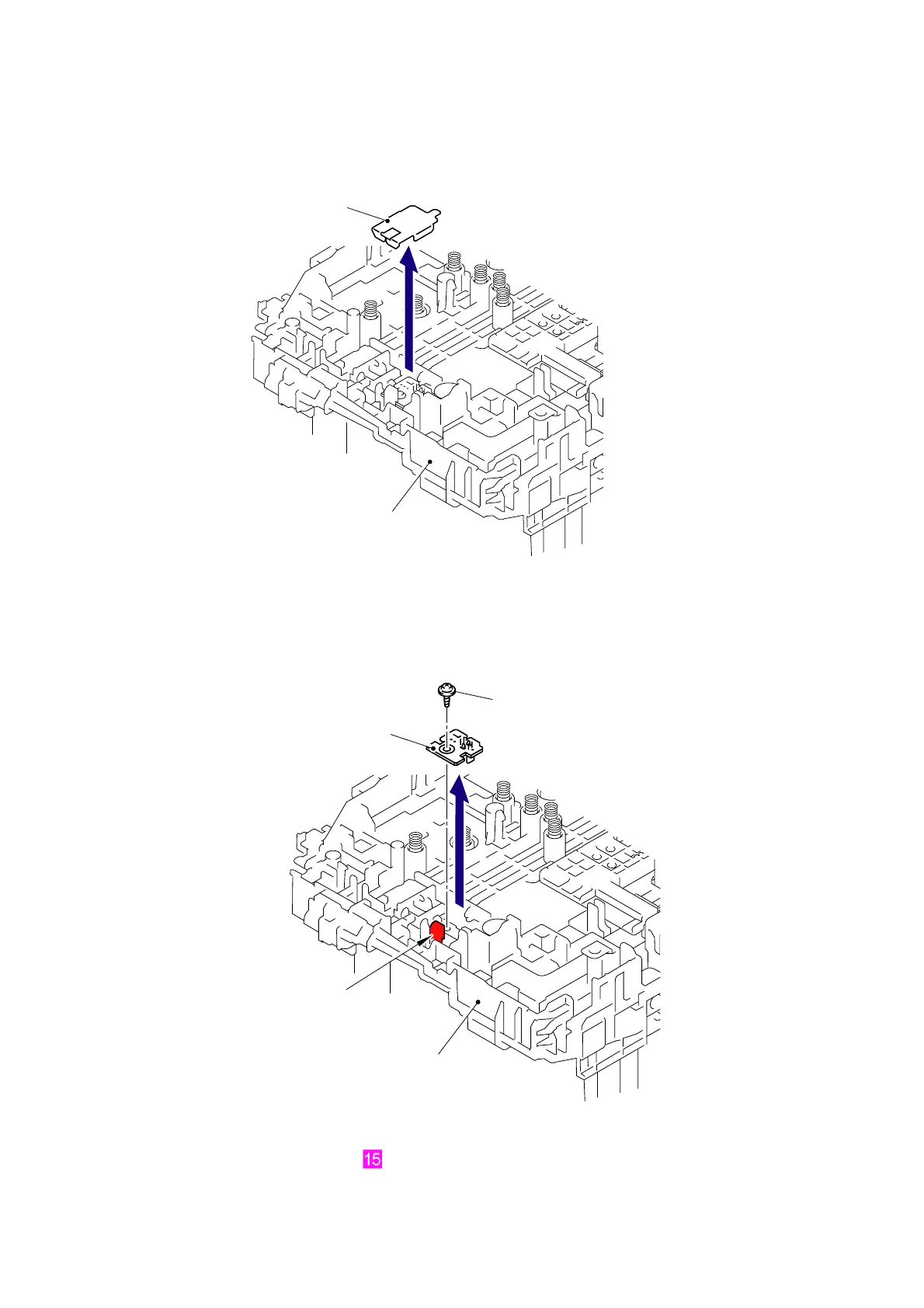

(1) Remove the Film from the Side frame R.
Fig. 5-263
(2) Remove the Taptite cup B M3x8 screw, and then release the Hook to remove the Develop
release sensor PCB ASSY from the Side frame R.
Fig. 5-264
Harness routing: Refer to “ Develop Release Sensor PCB ASSY, Top Cover Open Switch,
Toner LED PCB ASSY.”
Side frame R
Film
Side frame R
Develop release sensor PCB ASSY
Hook
Taptite cup B M3x8
