Brother MFC-9010CN Service Manual

5-94
Confidential
8.37 USB Direct Interface Relay PCB ASSY
(USB direct interface model only)

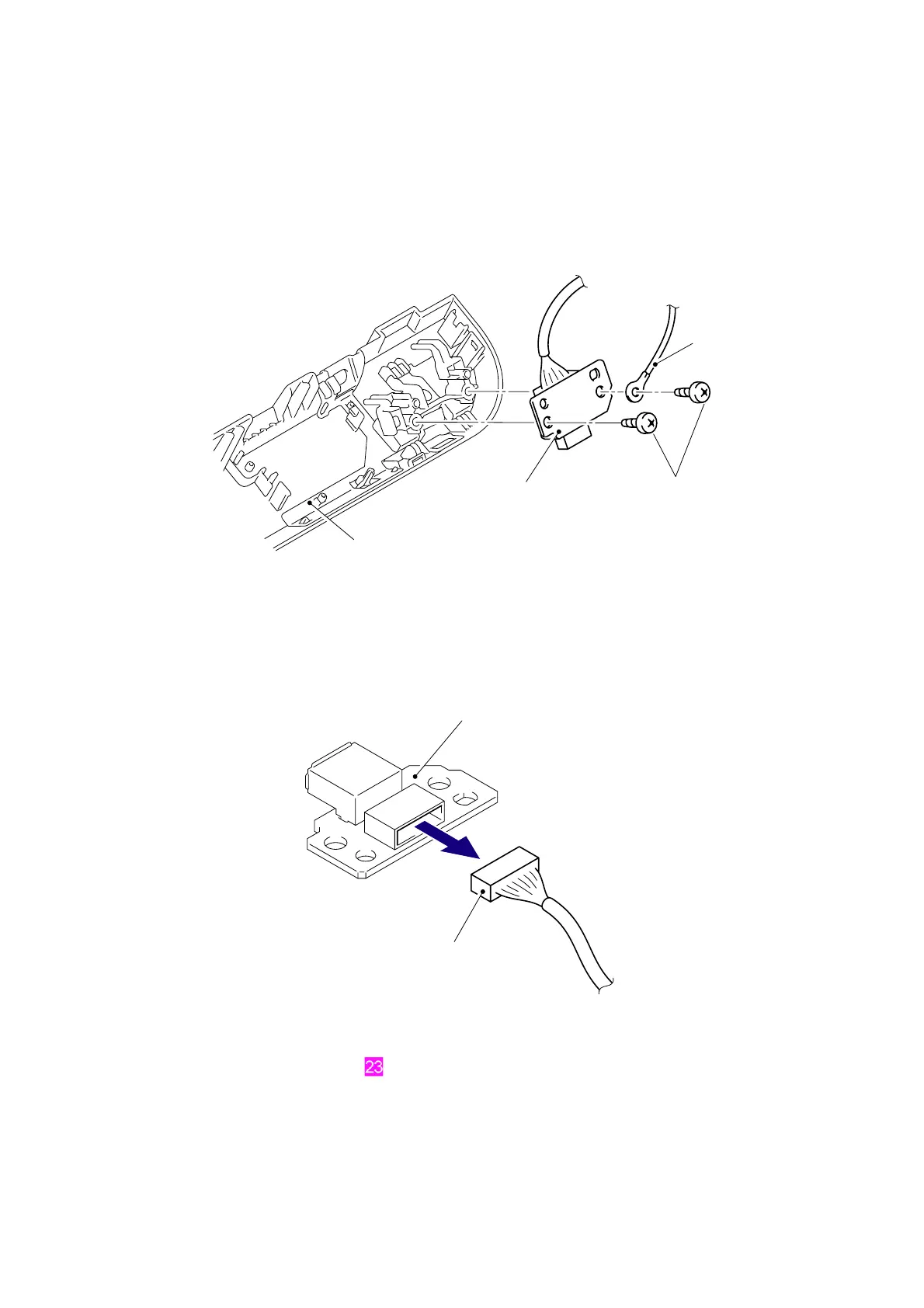

(1) Remove the two Taptite bind B M3x8 screws and FG harness.
(2) Remove the USB direct interface relay PCB ASSY from the Front cover top ASSY.
Fig. 5-94
(3) Disconnect the Connector of the USB A-MAIN relay harness ASSY from the USB direct
interface relay PCB ASSY.
Fig. 5-95
Harness routing: Refer to “ Front Cover Top ASSY (USB Direct Interface Relay PCB
ASSY).”
Taptite bind B M3x8
Front cover top ASSY
FG harness
USB direct interface relay PCB ASSY
USB A-MAIN relay harness ASSY
USB direct interface relay PCB ASSY
