5-43
Confidential
8.7 Paper Eject Front Actuator

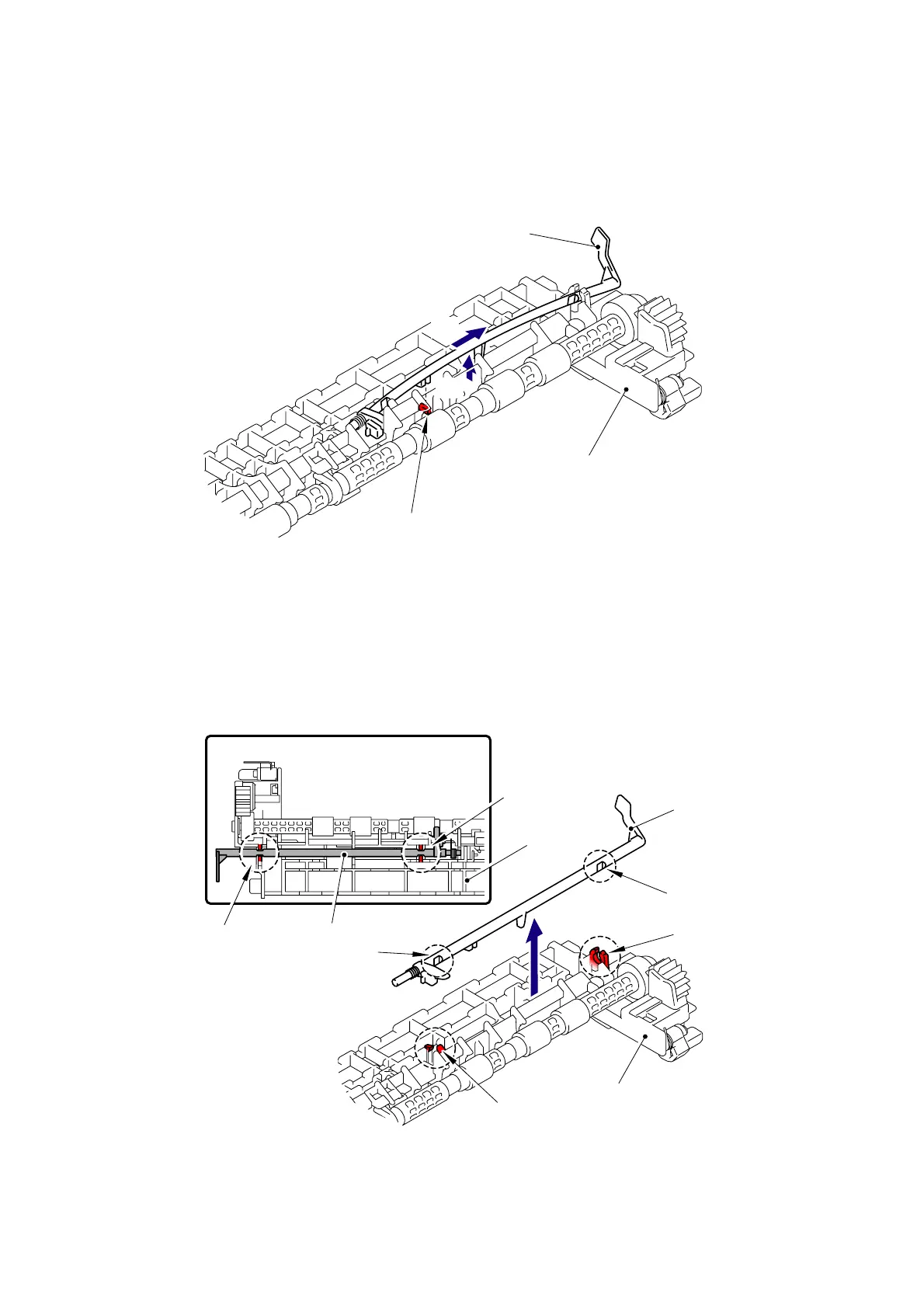

(1) Release the Hook and slide the Paper eject front actuator in the direction of arrows 1a
and 1b in this order.
Fig. 5-16
(2) Align the “A” and “B” of the Paper eject front actuator with the “C” and “D” of the Fuser
cover respectively, and remove the Paper eject front actuator.
Fig. 5-17
Fuser cover
Hook
Paper eject front actuator
1a
1b
<Left side>
Paper eject front
“A”
“B”
Fuser cover
“C”
“D”
Fuser cover
Paper eject front actuator
“C”
“D”
<Left side>
* Top view of the Fuser cover
actuator
To Next Page
