(3) Remove the two Taptite bind B M4x12 screws from the Front cover.
(4) Release the six Hooks and two Bosses to remove the Front cover from the Main body.
(5) Remove the two FG plate from the Front cover.

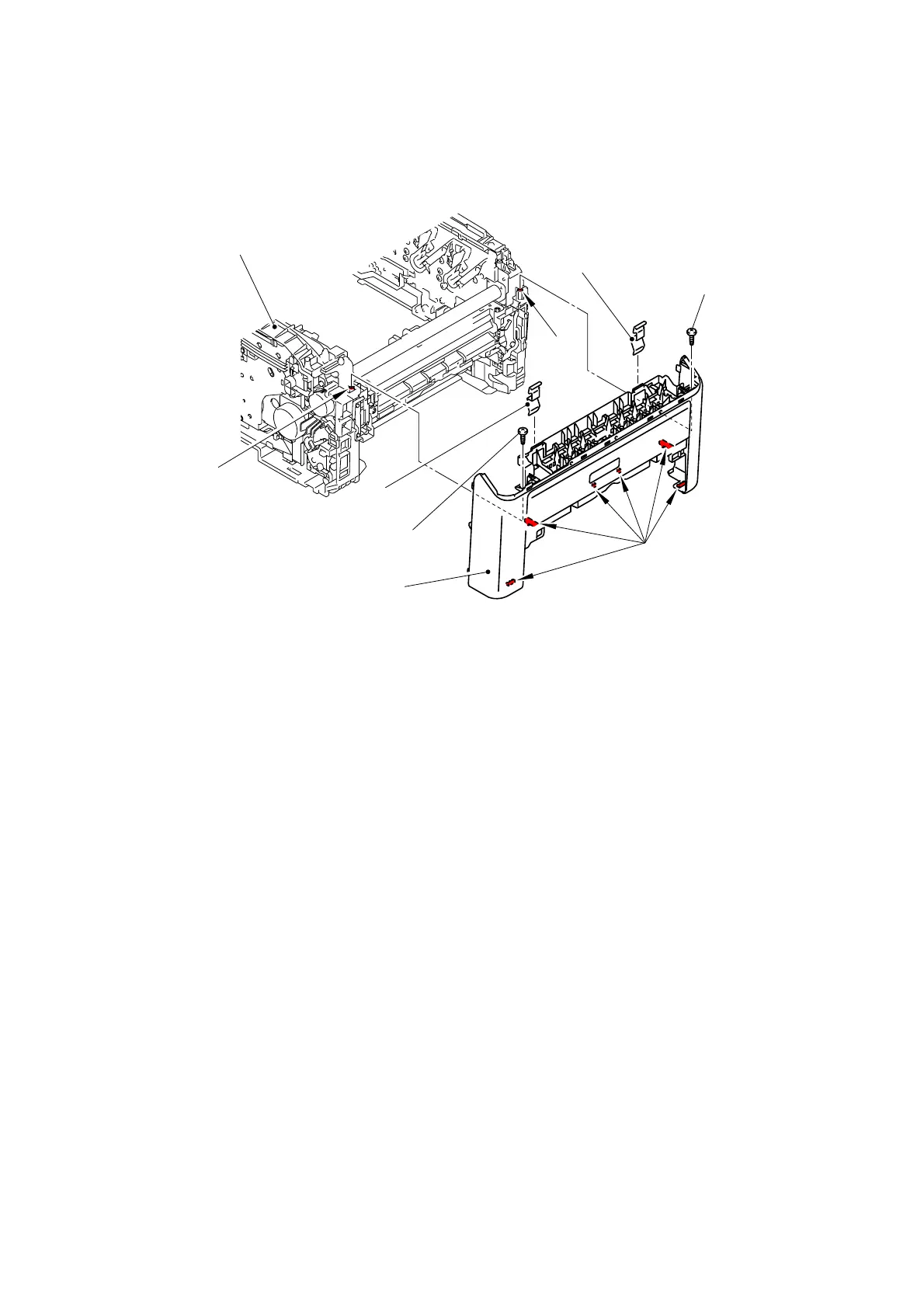

Fig. 5-105
Boss
Boss
Main body
Front cover
Taptite bind B M4x12
Taptite bind B M4x12
Hook
<Front>
FG plate
FG plate
