8.84 High-voltage Power Supply PCB ASSY

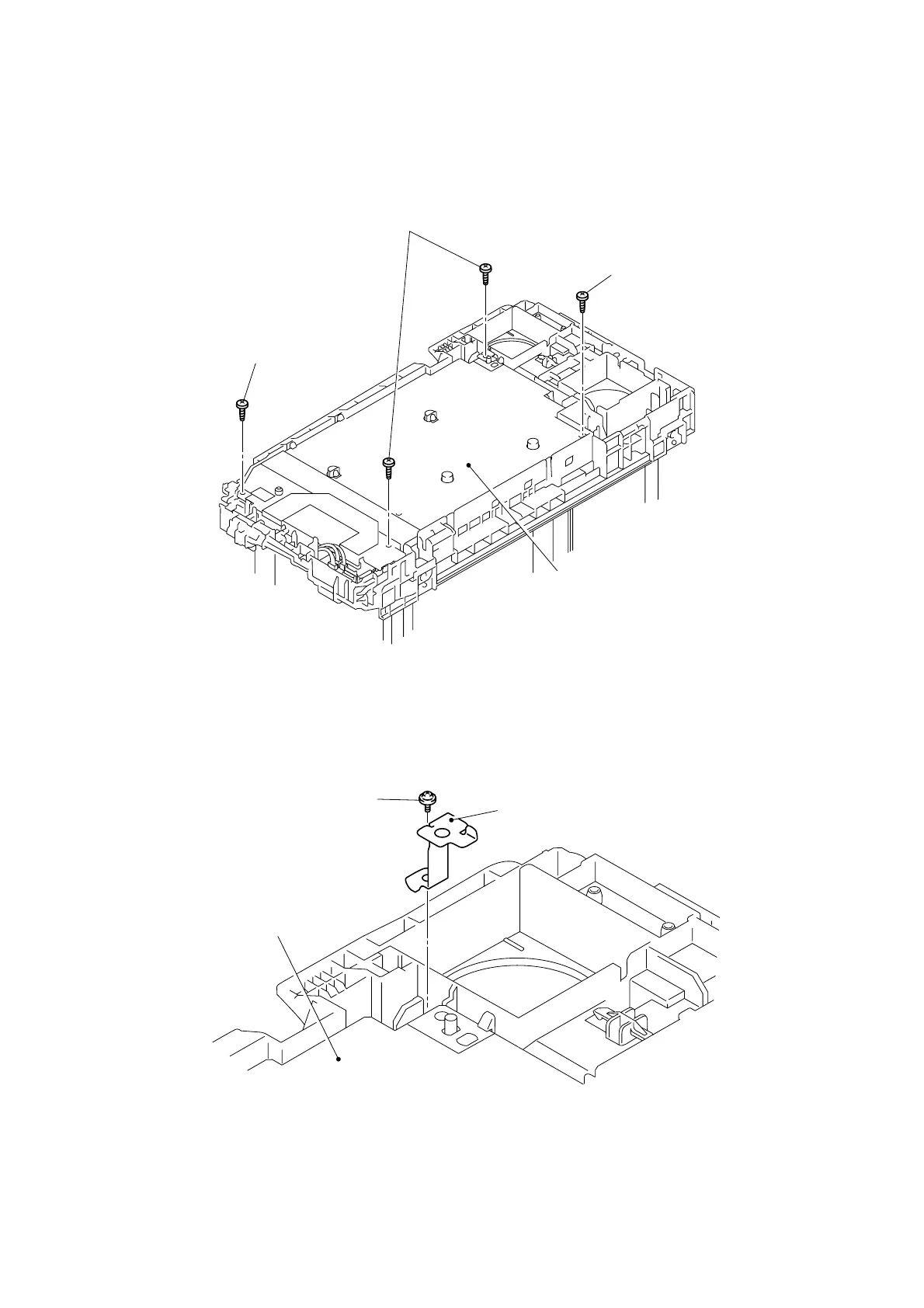

(1) Remove the two Taptite bind B M4x12 screws and two Taptite pan (washer) B M4x12DA
screws from the High-voltage power supply PCB ASSY.
Fig. 5-246
(2) Remove the Taptite cup S M3x6 SR screw, and then remove the HVPS ground plate 2
from the High-voltage power supply PCB ASSY.
Fig. 5-247
High-voltage power
Taptite bind B M4x12
Taptite bind B M4x12
Taptite pan (washer) B M4x12DA
supply PCB ASSY
HVPS ground plate 2
Taptite cup S M3x6 SR
High-voltage power supply PCB ASSY
