3.3.5 Paper supply from manual feed slot and paper eject from back
When making print from the manual feed slot, set papers on it with the print side up. A sheet of
paper which is inserted from the manual feed slot one by one presses the manual paper
actuator, and consequently the actuator detects that there is a sheet of paper. When the manual
paper actuator is turned ON, pick-up from the manual feed slot is given priority. Power of the
paper feed motor rotates the PF registration roller, and a sheet of paper is picked up.
When making print while the back cover is open, a printed sheet is ejected from the back with its
print side up.

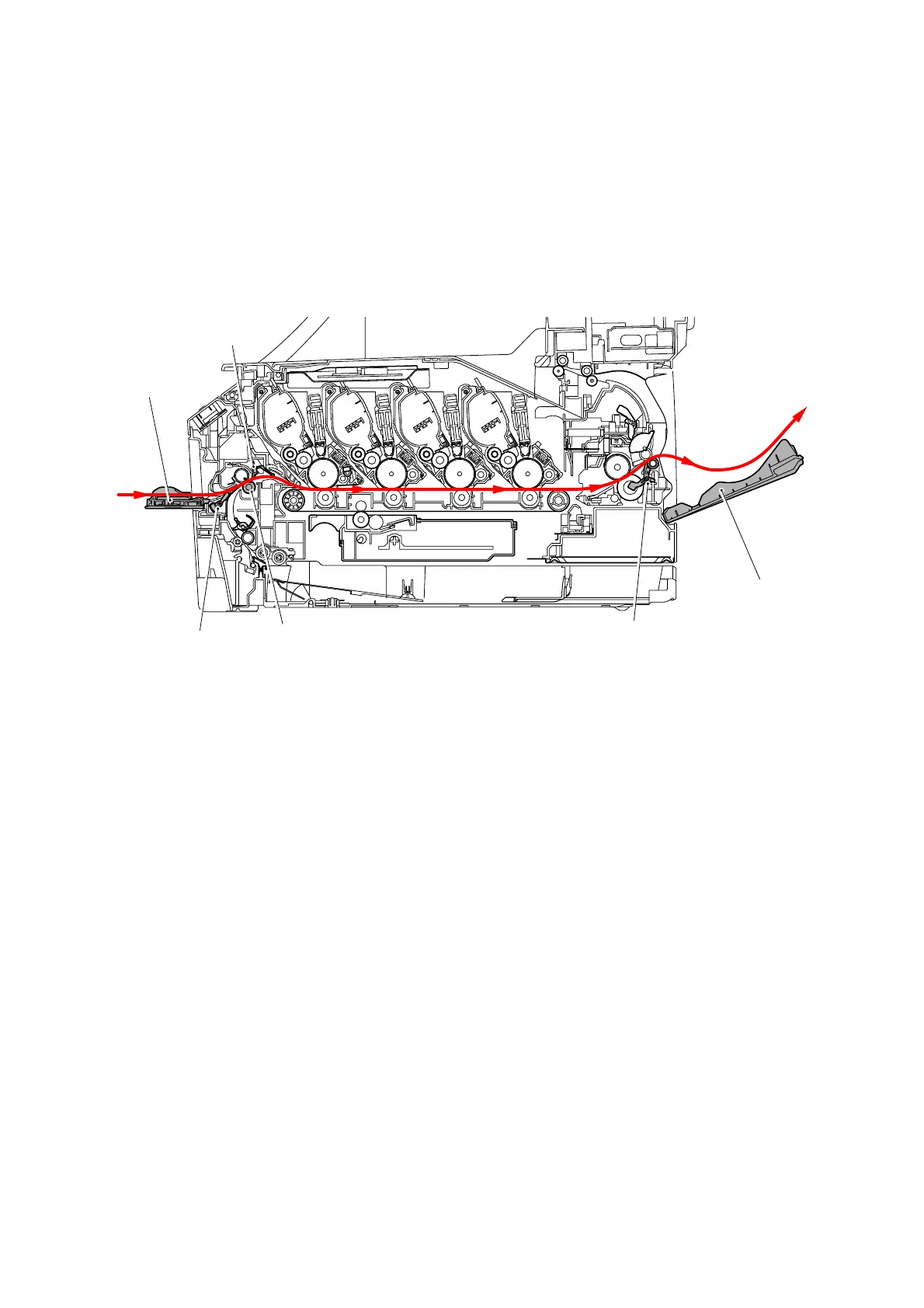

Fig. 2-15
Manual feed slot
Manual paper actuator
Registration rear actuator
Paper eject front actuator
Back cover
PF registration roller
