5-6
Confidential

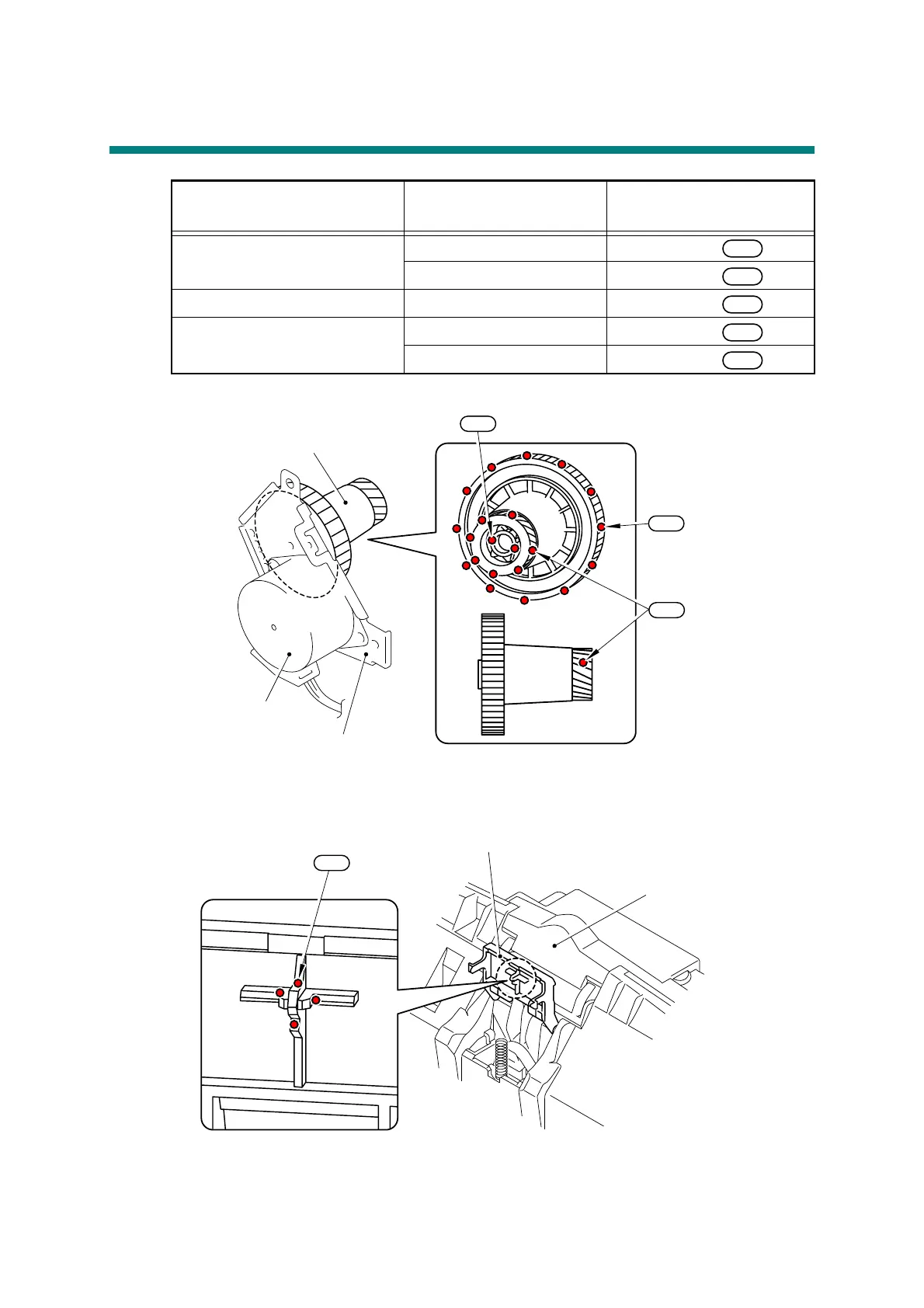

4. LUBRICATION
PG2: MOLYKOTE PG-661 (W) (2 mm dia. ball)
BG2: FLOIL BG-MU (2 mm dia. ball)
EM2: MOLYKOTE EM-D110 (2 mm dia. ball)
The kind of the lubricating oil
(Maker name)
Lubrication point Quantity of lubrication
MOLYKOTE PG-661 (W)
(Dow Corning)
Belt drive gear 2 mm dia. ball
LED ASSY 1 mm dia. ball
FLOIL BG-MU (Kanto Kasei) Belt drive gear 2 mm dia. ball
MOLYKOTE EM-D110
(Dow Corning)
Separation pad ASSY 2 mm dia. ball
Paper tray 2 mm dia. ball
PG2
PG1
BG2
EM2
EM2
BG2
BG2
PG2
Belt drive motor
Belt drive plate
Belt drive gear
2 places
16 places
8 places
* Around the center
* Around one third from
of tooth width
the tip of the tooth width
EM2
4 places
Separation pad ASSY
Paper tray
