5-174
Confidential
8.75 Eject Rear Sensor PCB ASSY

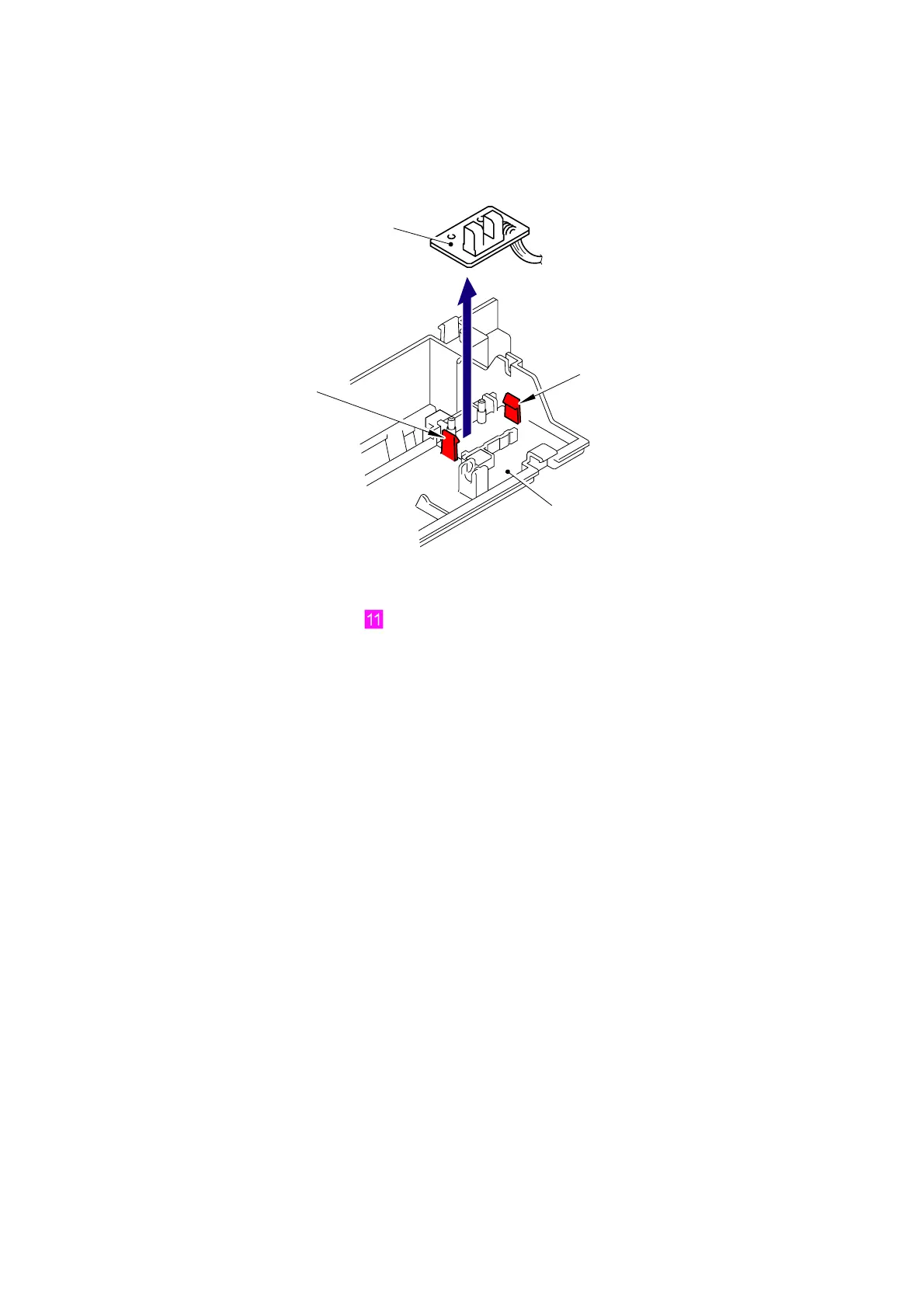

(1) Release the two Hooks to remove the Eject rear sensor PCB ASSY from the Lower air duct.
Fig. 5-221
Harness routing: Refer to “ Eject Rear Sensor PCB ASSY.”
Hook
Lower air duct
Eject rear sensor PCB ASSY
Hook
