Brother MFC-9010CN Service Manual

5-167
Confidential

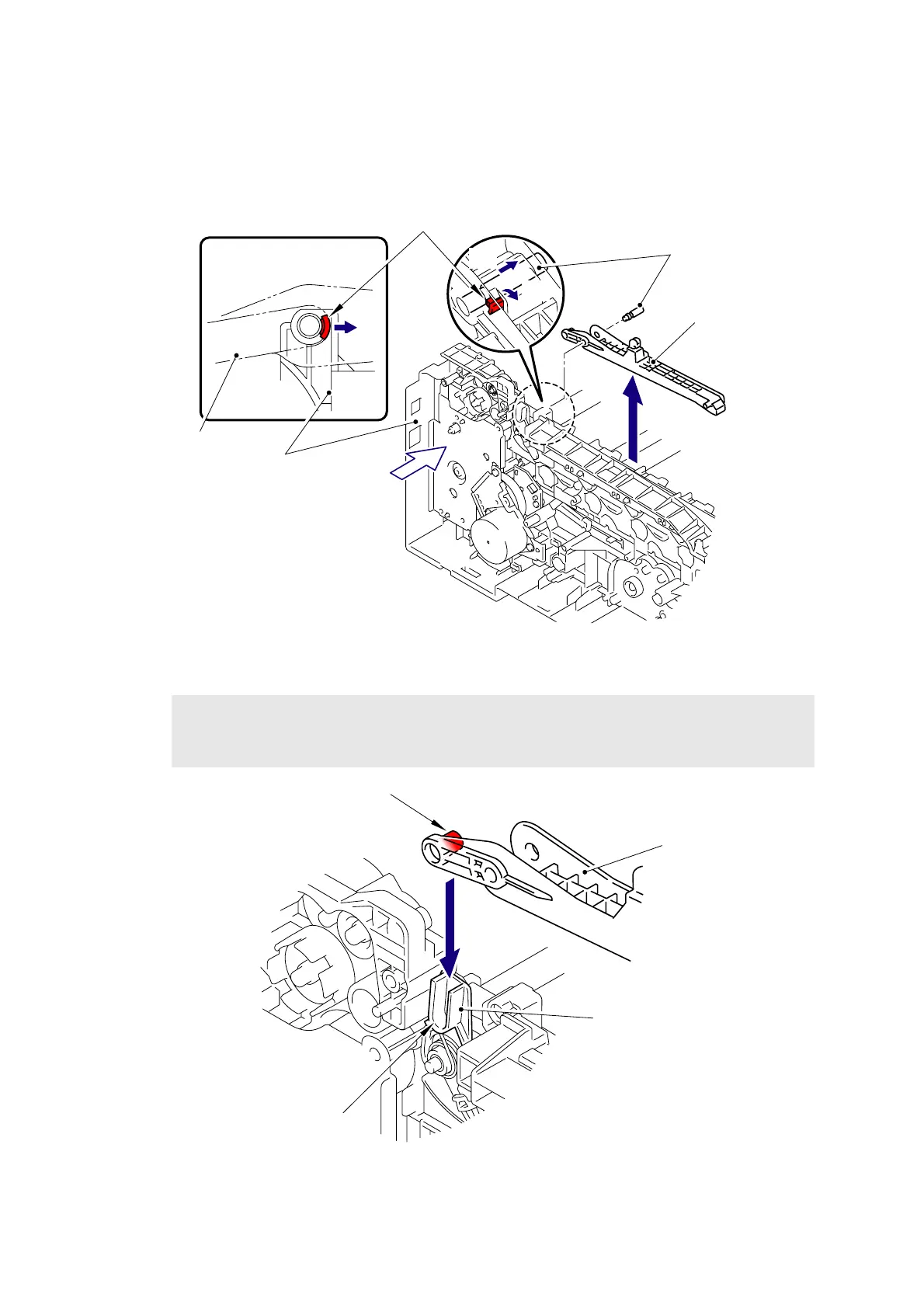

8.72 Top Cover Arm L
(1) Release the Hook to remove the TC arm pivot shaft from the Side frame L.
(2) Remove the Top cover arm L from the Side frame L.
Fig. 5-209
Fig. 5-210
Assembling Note:
When assembling the Top cover arm L, make sure to fit the “A” of the Top cover arm L into
the “B” of the Top cover link 1 before assembling the Top cover arm L onto the Side frame L.
Hook
Top cover arm L
TC arm pivot shaft
Top cover arm L
Side frame L
A view
<A view>
1a
1a
1b
2
Top cover arm L
“A”
“B”
Top cover link 1
