Brother MFC-9010CN Service Manual

5-58
Confidential
8.12 Hinge ASSY L

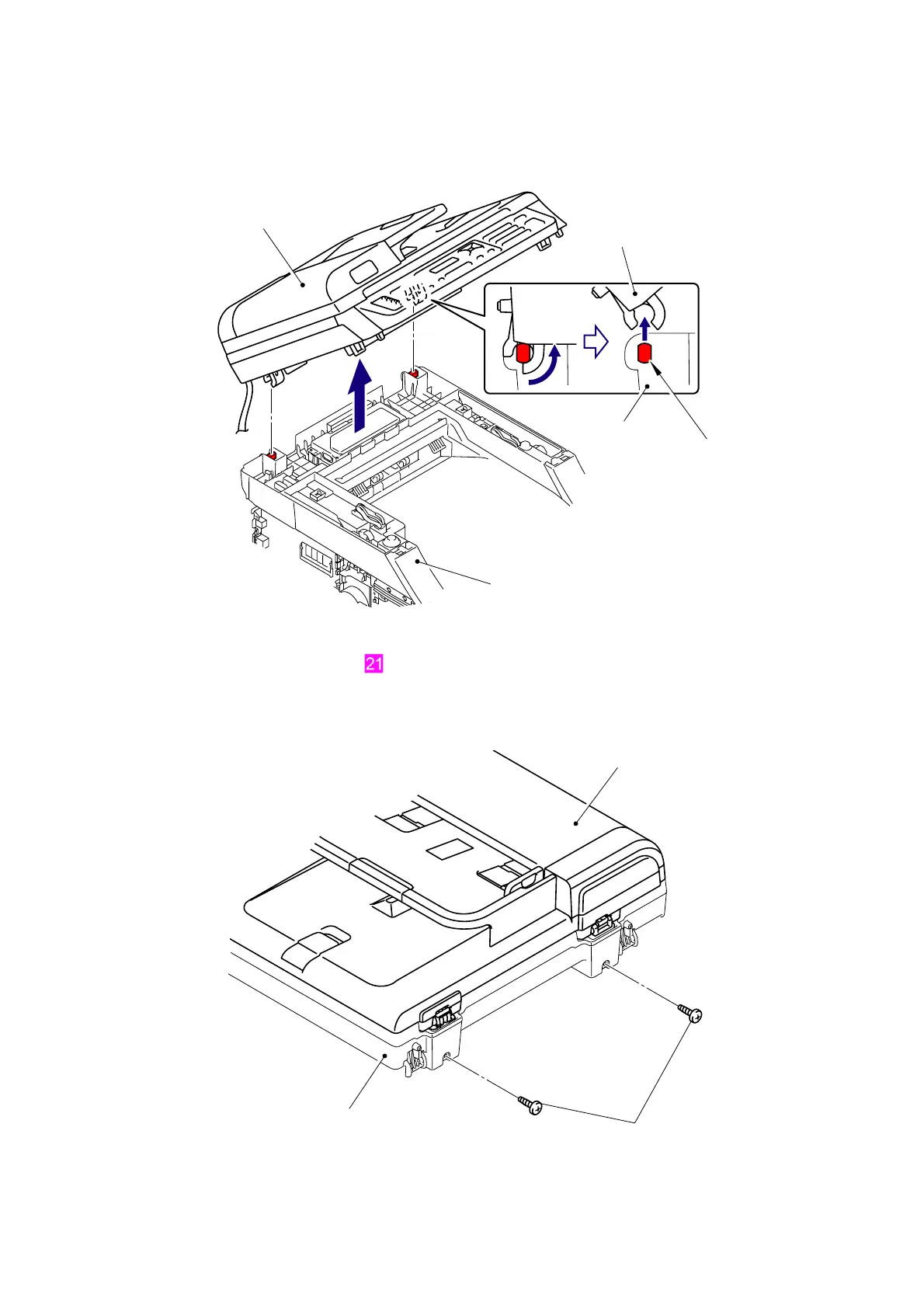

(1) Remove the Document scanner unit from the Joint cover sub ASSY.
Fig. 5-39
Harness routing: Refer to “ Document Scanner Unit.”
(2) Remove the two Taptite bind B M4x12 screws from the ADF unit.
Fig. 5-40
Joint cover sub ASSY
Document scanner unit
Document scanner unit
Joint cover sub ASSY
Shaft part of joint cover sub ASSY
1a
1b
1c
ADF unit
Taptite bind B M4x12
Document scanner unit
