5-162
Confidential
8.68 Pick-up Solenoid/Pick-up Solenoid Lever Spring

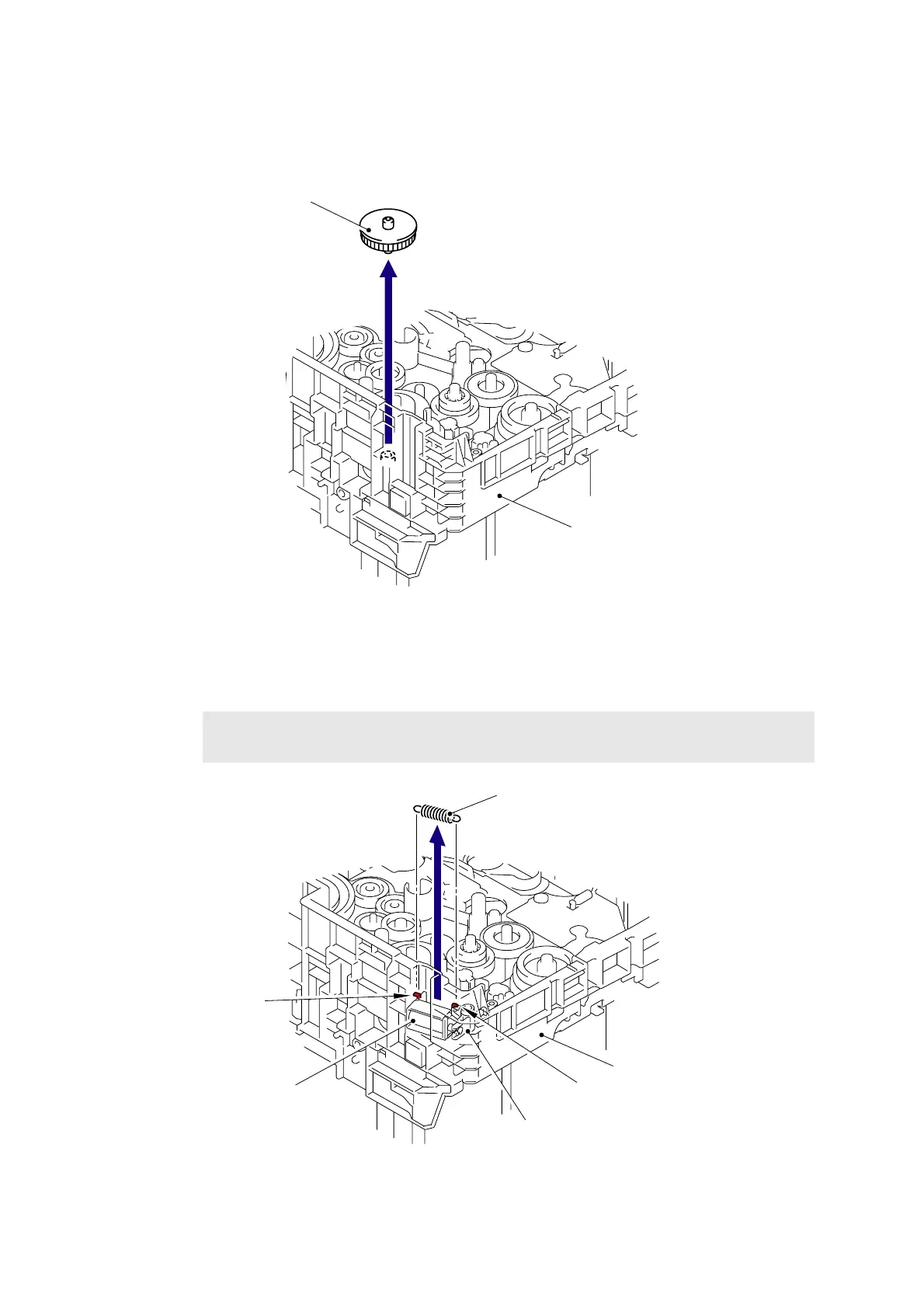

(1) Remove the Idle gear 40 from the Side frame L.
Fig. 5-201
(2) Remove the Pick-up solenoid lever spring from the Hook of the Pick-up solenoid lever.
(3) Remove the Pick-up solenoid lever spring from the Side frame L.
Fig. 5-202
Note:
Be careful not to lose the Pick-up solenoid lever spring.
Side frame L
Idle gear 40
Pick-up solenoid lever
Hook
Pick-up solenoid lever spring
Side frame L
Pick-up solenoid
Hook
