Brother MFC-9010CN Service Manual

5-52
Confidential
8.10 Side Cover R ASSY
(1) Remove the two Taptite bind B M4x12 screws from the Side cover R ASSY.
(2) Release the two Hooks and two Bosses on the upper side and four Hooks on the bottom,
and then remove the Side cover R ASSY from the Main body.

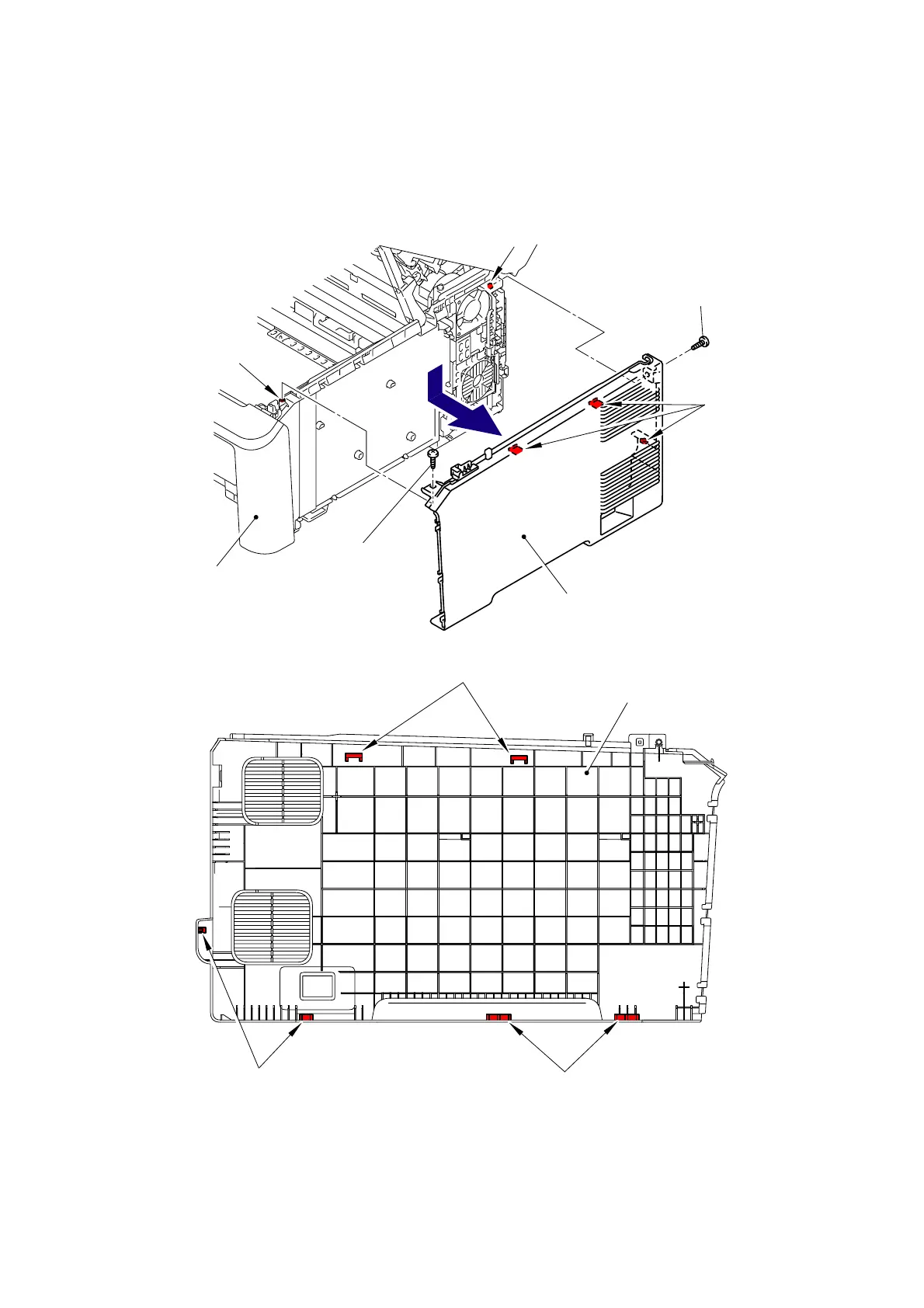

Fig. 5-30
Taptite bind B M4x12
Hook
Main body
Side cover R ASSY
Taptite bind B M4x12
Boss
Boss
<Right side>
* Inside of Side cover R ASSY
<Front>
<Back side>
Side cover R ASSY
Hook
Hook
Hook
