5-51
Confidential

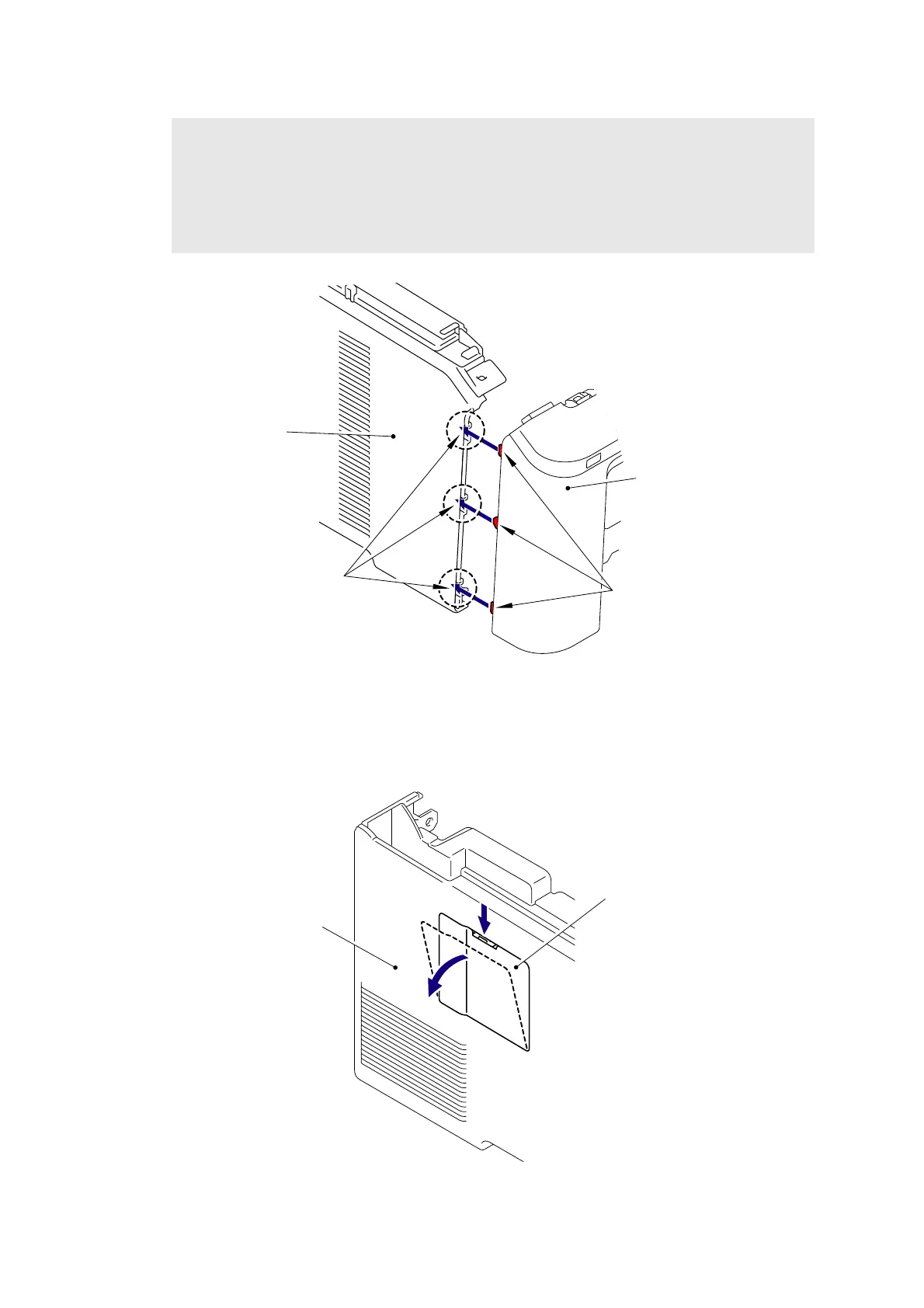

Fig. 5-29
(4) Remove the Access cover from the Side cover L ASSY.
Fig. 5-29-1
Assembling Note:
- When assembling the Side cover L ASSY onto the Main body, make sure to push the
three Hooks of the Front cover into the three “A” of the Side cover L ASSY.
- If the scotch tape to fix the NCU harness is peeled off when assembling the Side cover L
ASSY, make sure to re-affix the tape before assembling the side cover L ASSY. If the
scotch tape is peeled off, the Side cover L ASSY may bite the NCU harness.
Side cover L ASSY
Front cover
“A”
Hook
<Left side>
Side cover L ASSY
Access cover
4a
4b
To Next Page
