5-91
Confidential
8.36 Wireless LAN PCB ASSY (Wireless LAN model only)

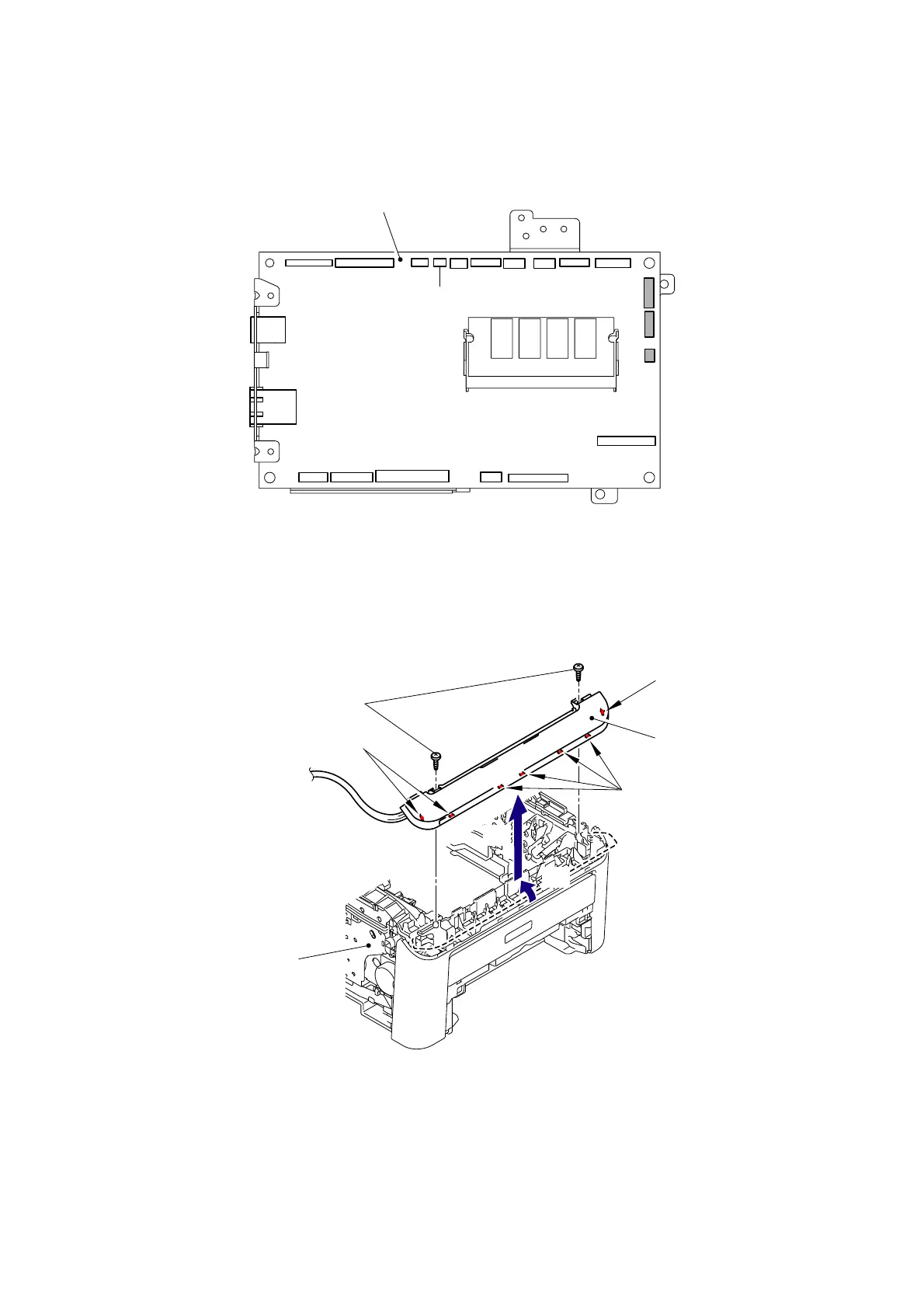

(1) Disconnect the three Connectors (CN1, CN2, CN13) and cables from the Main PCB ASSY.
Fig. 5-89
(2) Remove the two Taptite bind B M4x12 screws, and then release the seven Hooks to
remove the Front cover top ASSY from the Main body.
Fig. 5-90
CN24
CN20
CN27
CN26
CN23
CN22
CN19
CN15
CN10
CN1
CN2
CN3
CN18
CN17
CN16
CN14
CN13
CN11
CN8
CN5
CN6
Main PCB ASSY
Taptite bind B M4x12
Front cover top ASSY
Main body
2a
2b
Hook
Hook
Hook
