8.53 Develop Release Motor ASSY

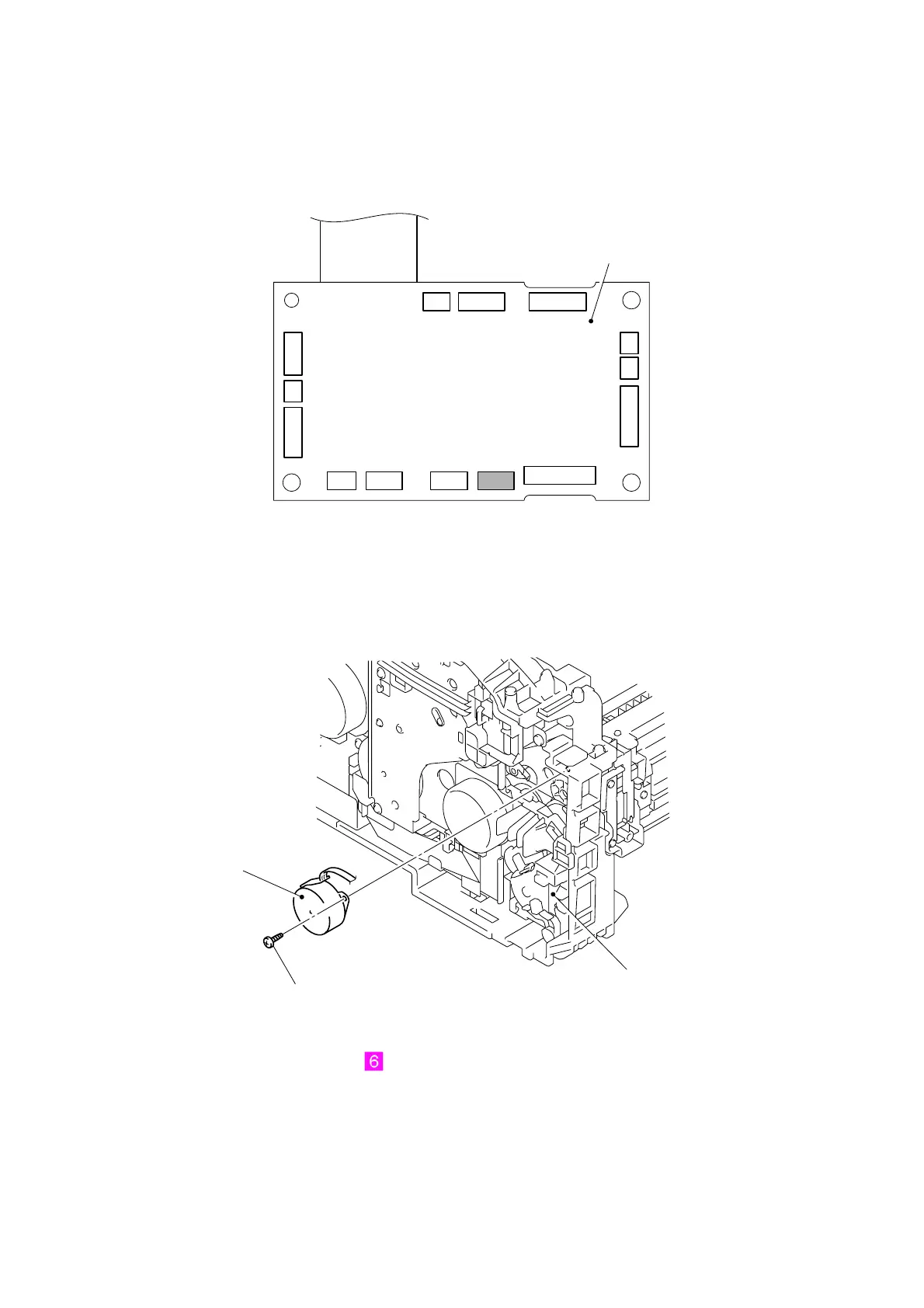

(1) Disconnect the Connector (CN5) from the Engine PCB ASSY.
Fig. 5-155
(2) Remove the Taptite bind S M3x5 screw, and then remove the Develop release motor
ASSY from the Side frame L.
Fig. 5-156
Harness routing: Refer to “ Develop Release Motor ASSY.”
CN11
CN15CN14CN13
CN1
CN2
CN3
CN10
CN9
CN8 CN7 CN6 CN5
CN4
Engine PCB ASSY
Taptite bind S M3x5
Side frame L
Develop release motor ASSY
<Left side>
