5-134
Confidential

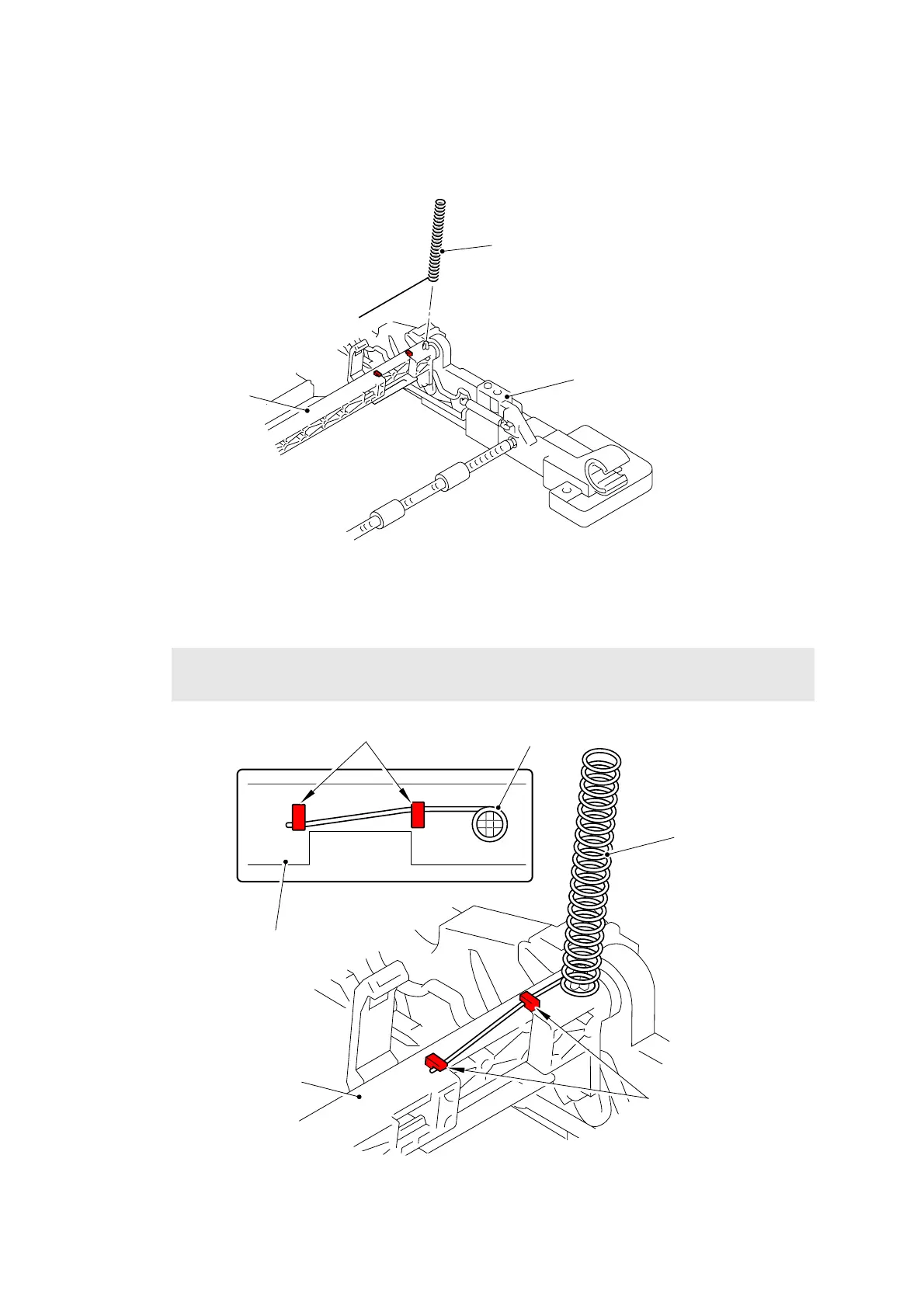

(2) Remove the Z spring R from the Holder of the Sub frame ASSY.
(3) Remove the Z spring L and Z spring R from the other three Holders with the
aforementioned procedures (1) and (2).
Fig. 5-153
Fig. 5-154
Assembling Note:
When mounting the Z spring R, make sure to assemble them as shown in the figure below.
Sub frame ASSY
Holder
Z spring R
Z spring R
Z spring R
Hook
Hook
Holder
Holder
