Brother MFC-9010CN Service Manual

5-67
Confidential

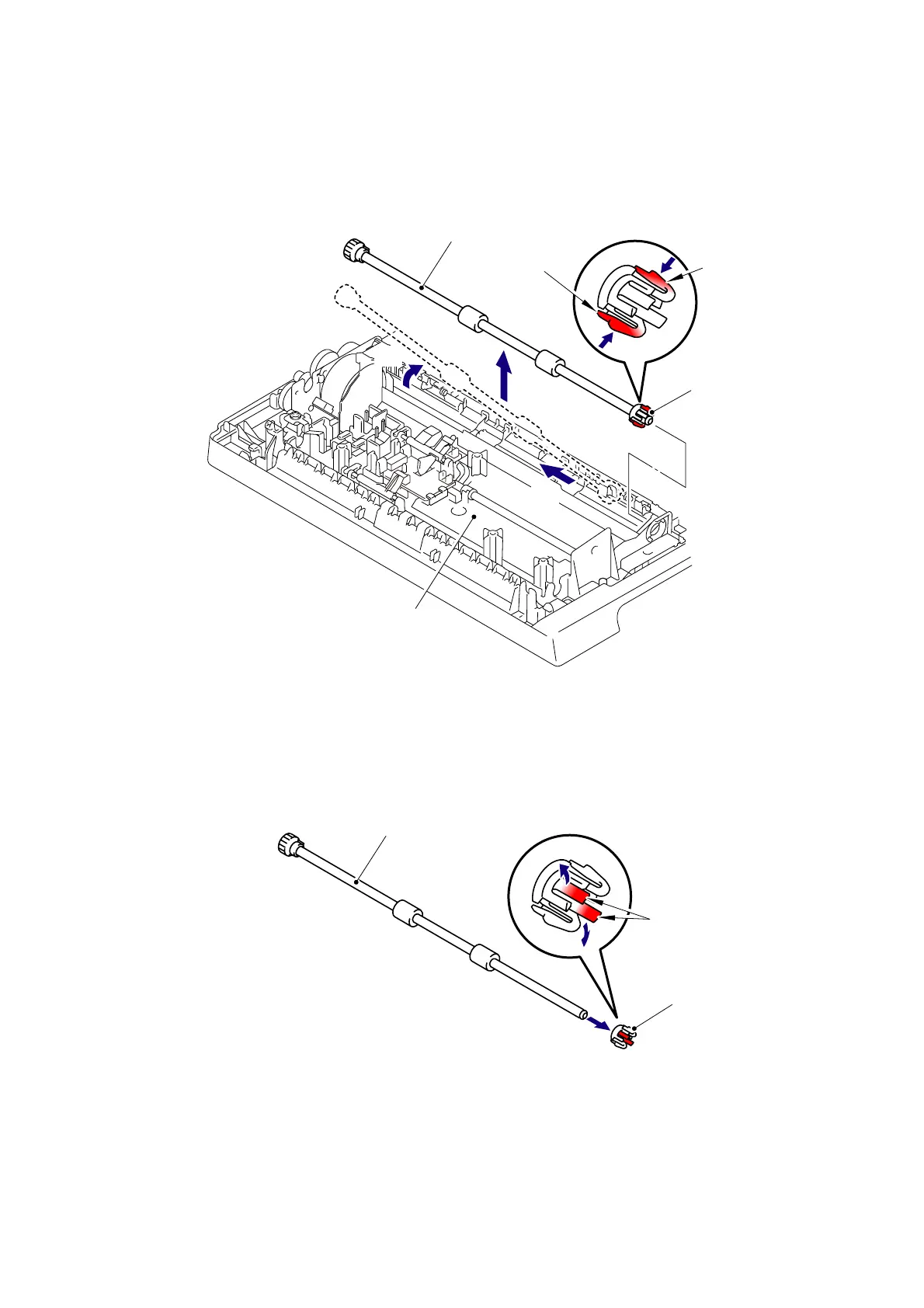

8.20 Ejection Roller ASSY
(1) Release the two Hooks A to remove the Ejection roller ASSY from the Lower document
chute ASSY.
Fig. 5-51
(2) Release the two Hooks B to remove the Ejection roller bush from the Ejection roller ASSY.
Fig. 5-51-1
Hook A
Lower document chute ASSY
Ejection roller ASSY
Ejection roller bush
Hook A
1b
1c
1d
1a
1a
Hook B
Ejection roller bush
2a
2a
2b
Ejection roller ASSY
