5-210
Confidential
8.92 LM Hook B/LM Hook C/Hook Spring BC10

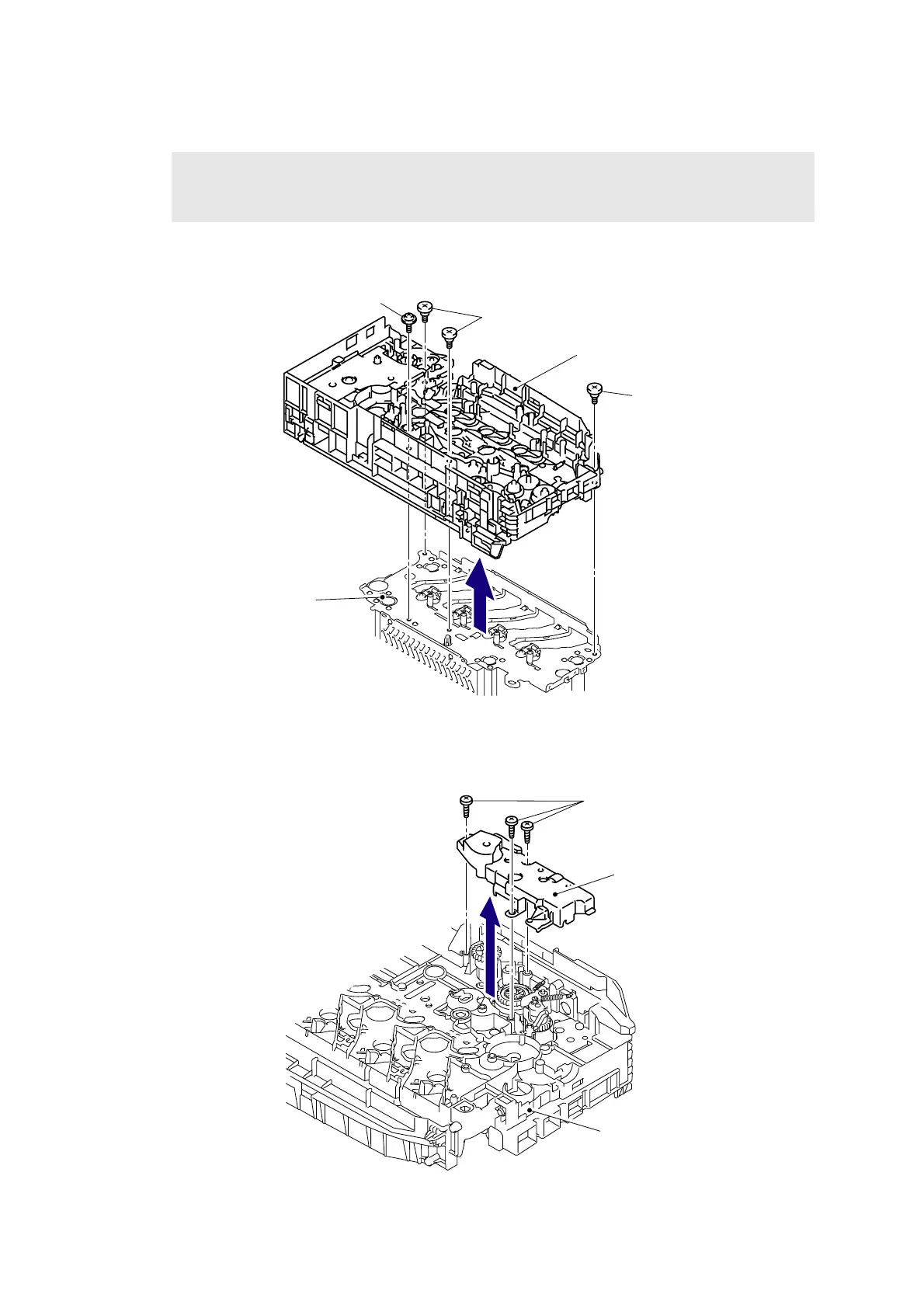

(1) Remove the three Shoulder screws M3 and one Taptite cup S M3x6 SR screw, and then
remove the Side frame L from the Base frame unit.
Fig. 5-284
(2) Remove the three Taptite bind B M4x12 screws, and then remove the Bevel gear cover
from the Side frame L.
Fig. 5-285
Note:
Be sure to mount the eject gear cover and cleaner PF gear cover before turning over the
side flame L.
Side frame L
Shoulder screw M3
Taptite cup S M3x6 SR
Shoulder screw M3
Base frame unit
Bevel gear cover
Taptite bind B M4x12
Side frame L
To Next Page
