Brother MFC-9010CN Service Manual

5-35
Confidential

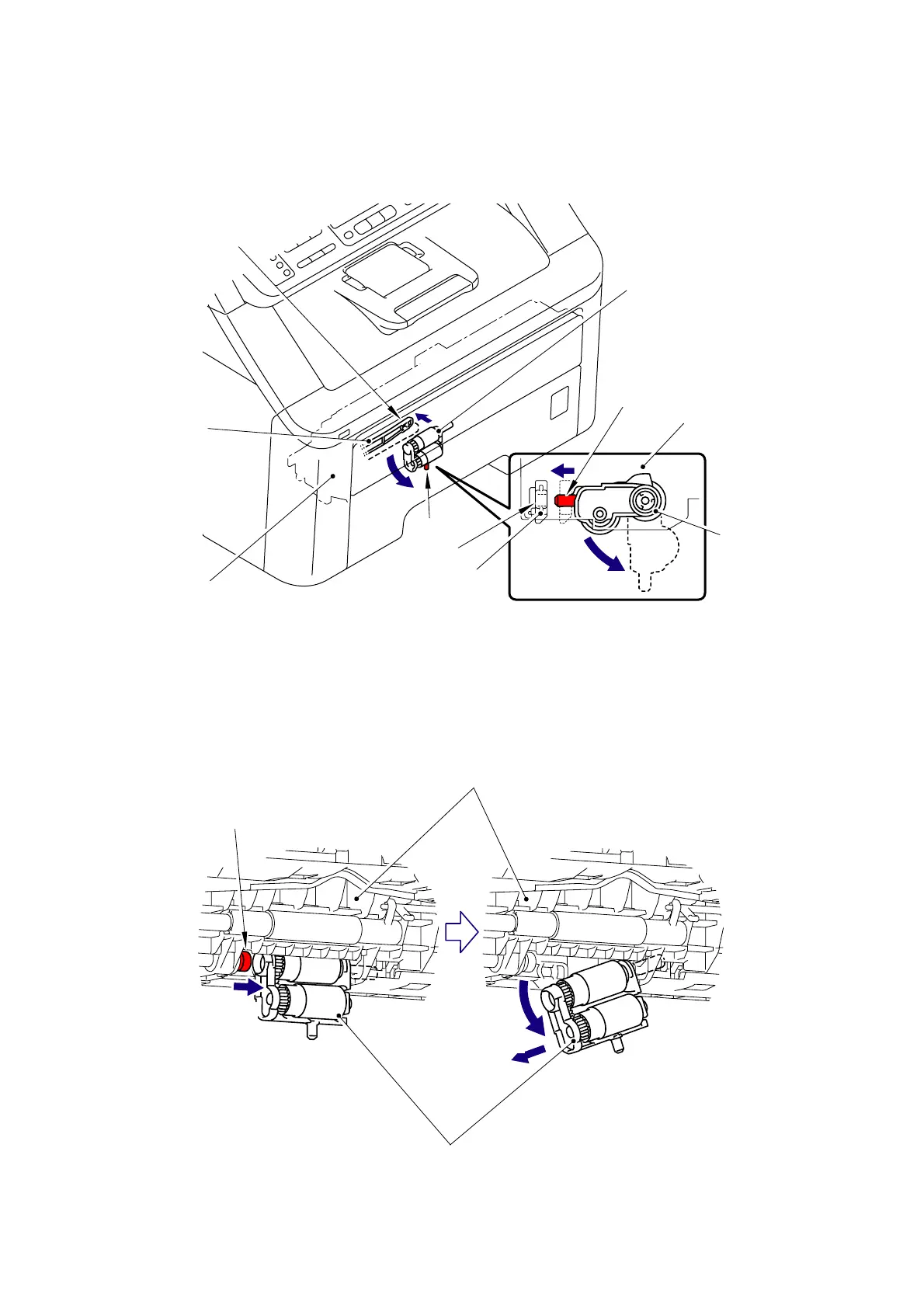

8.3 Roller Holder ASSY
(1) Push the Lift arm to the back and remove “B” of the Roller holder ASSY from “A” of the Lift
arm, and the Roller holder ASSY rotates in the direction of the arrow 1b.
Fig. 5-3
(2) Slide the Roller holder ASSY in the direction of the arrow 2 and remove it from “C” of the
Paper feed unit.
(3) Slide the Roller holder ASSY in the direction of the arrows 3a and 3b in this order and
remove it from the Paper feed unit.
Fig. 5-4
Lift arm
Lift arm
“A”
Roller holder
“B”
Paper feed unit
“B”
Roller holder ASSY
Paper feed unit
“A”
1a
1b
1a
1b
ASSY
<Front>
Paper feed unit
“C”
Roller holder ASSY
2
3a
3b
