3.2.2 Paper feeding kit
<Uninstalling procedure>
(1) Release the two Hooks of the Separation pad ASSY from the Paper tray.
(2) Release the two Pins to remove the Separation pad ASSY from Paper tray.

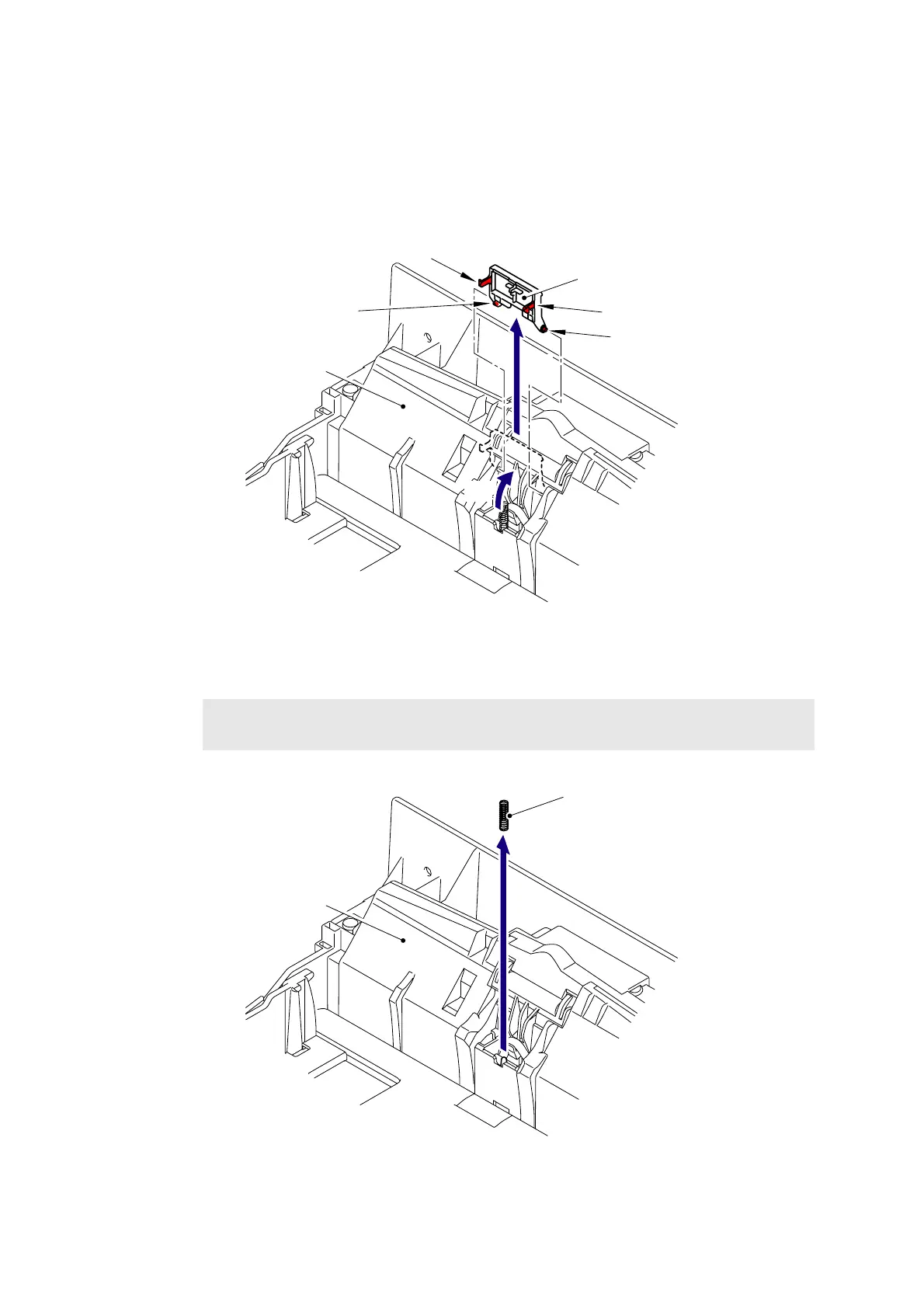

Fig. 4-25
(3) Remove the Pad spring from the Paper tray.
Fig. 4-26
Note:
Be careful not to lose the Pad spring.
Paper tray
Separation pad ASSY
Hook
Pin
Hook
Pin
2a
2b
Paper tray
Pad spring
