Brother MFC-9010CN Service Manual

2-10
Confidential

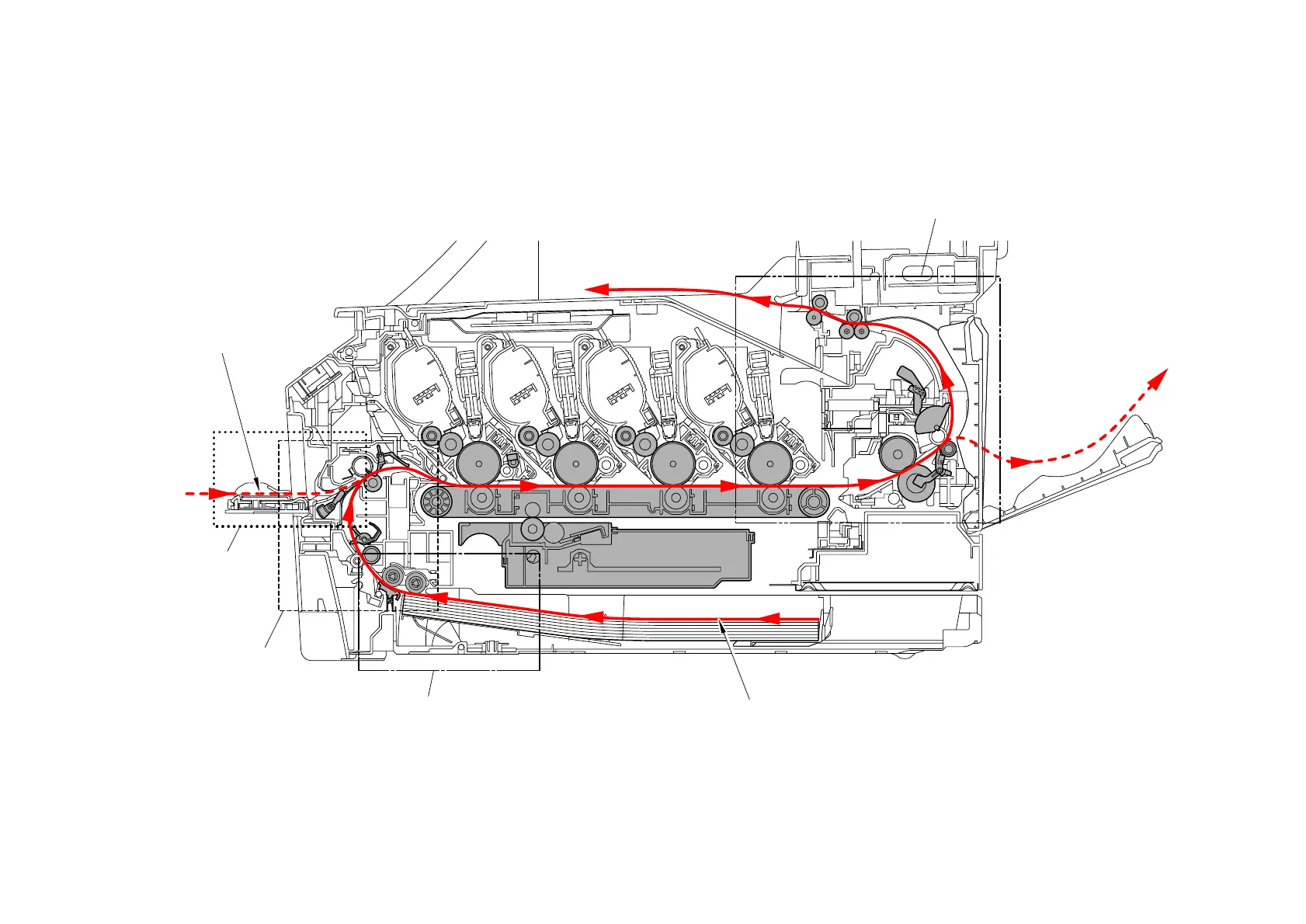

3.3 Paper Feeding
Fig. 2-9
<Back side><Front>
Paper tray path
Manual feed slot path
Paper eject function
(Refer to “3.3.4”)
Manual feed
Plate-up function
(Refer to “3.3.1”)
Paper pick-up
function
(Refer to “3.3.5”)
function
(Refer to “3.3.2”)
