5-151
Confidential
8.63 Paper Feed Unit

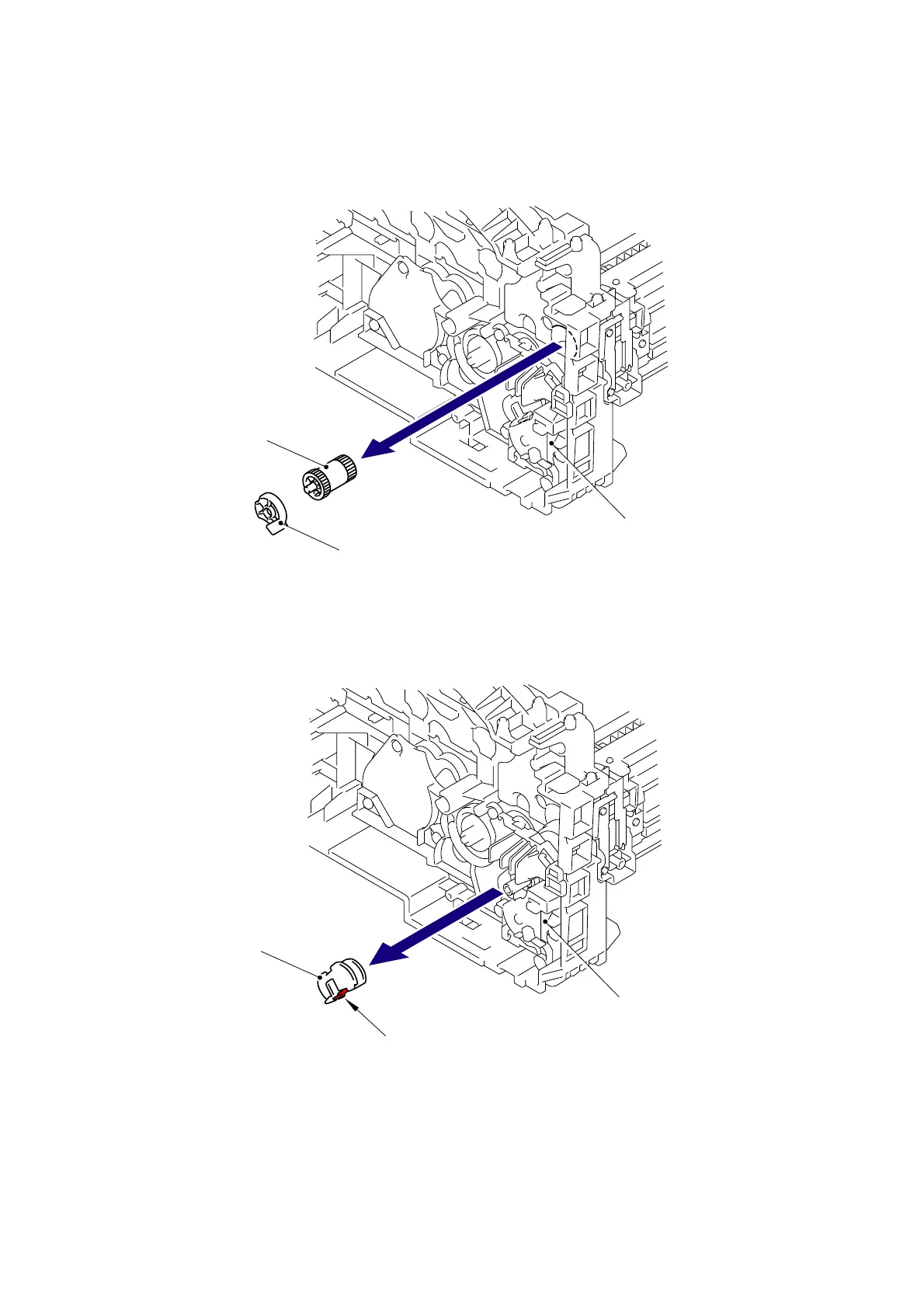

(1) Remove the Bush cap and Gear 24/28 from the Side frame L.
Fig. 5-180
(2) Release the Hook to remove the PF gear cap from the Side frame L.
Fig. 5-181
Side frame L
Bush cap
Gear 24/28
<Left side>
Hook
Side frame L
PF gear cap
<Left side>
