8.89 TR Head Spring

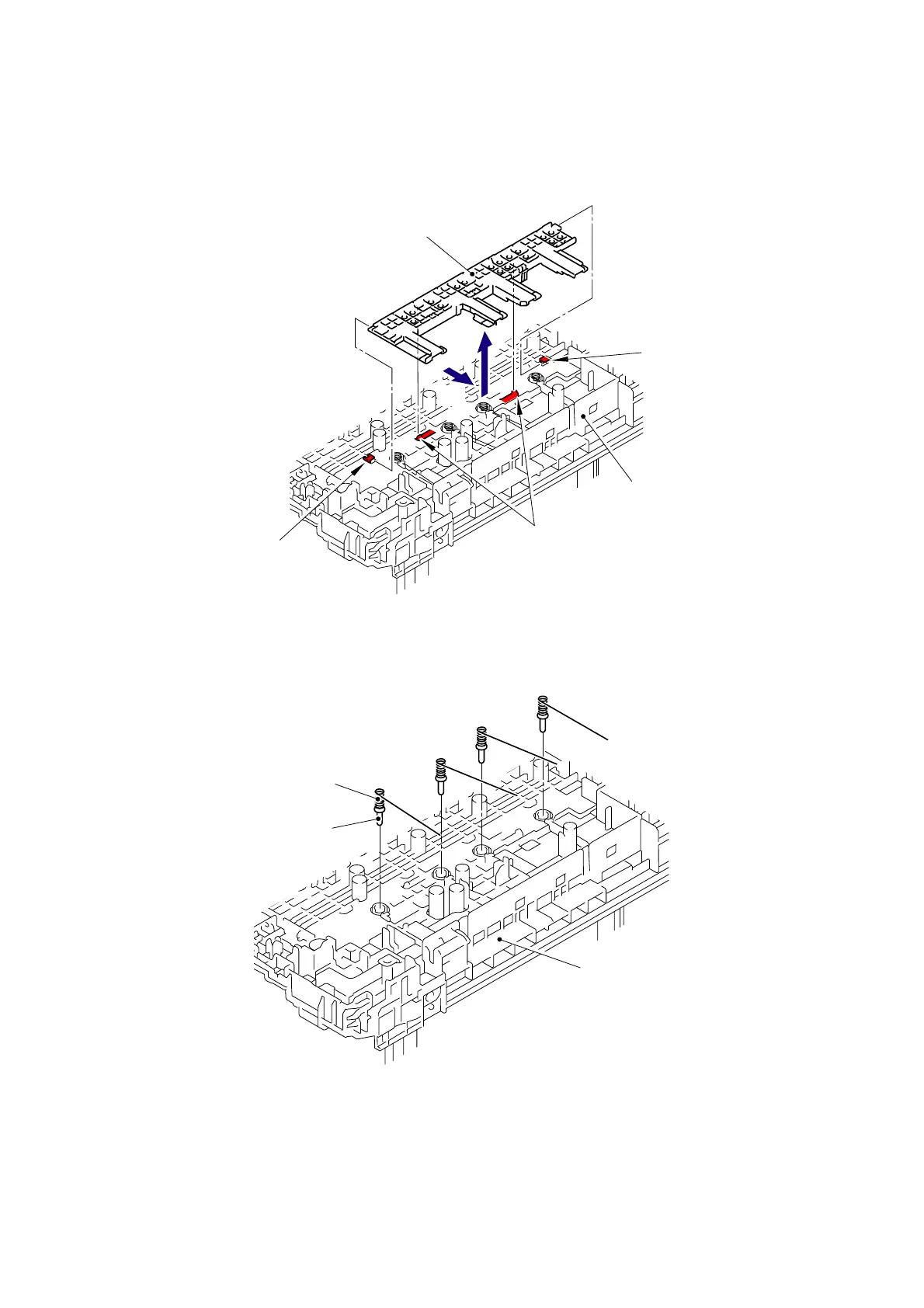

(1) Release the four Hooks, slide the TR head cover in the direction of the arrow 1a, and
remove it from the Side frame R in the direction of the arrow 1b.
Fig. 5-272
(2) Remove the four Electrode head 2 and four TR head spring from the Side frame R.
Fig. 5-273
Side frame R
Hook
TR head cover
1a
Hook
Hook
1b
Side frame R
Electrode head 2
TR head spring
