5-142
Confidential

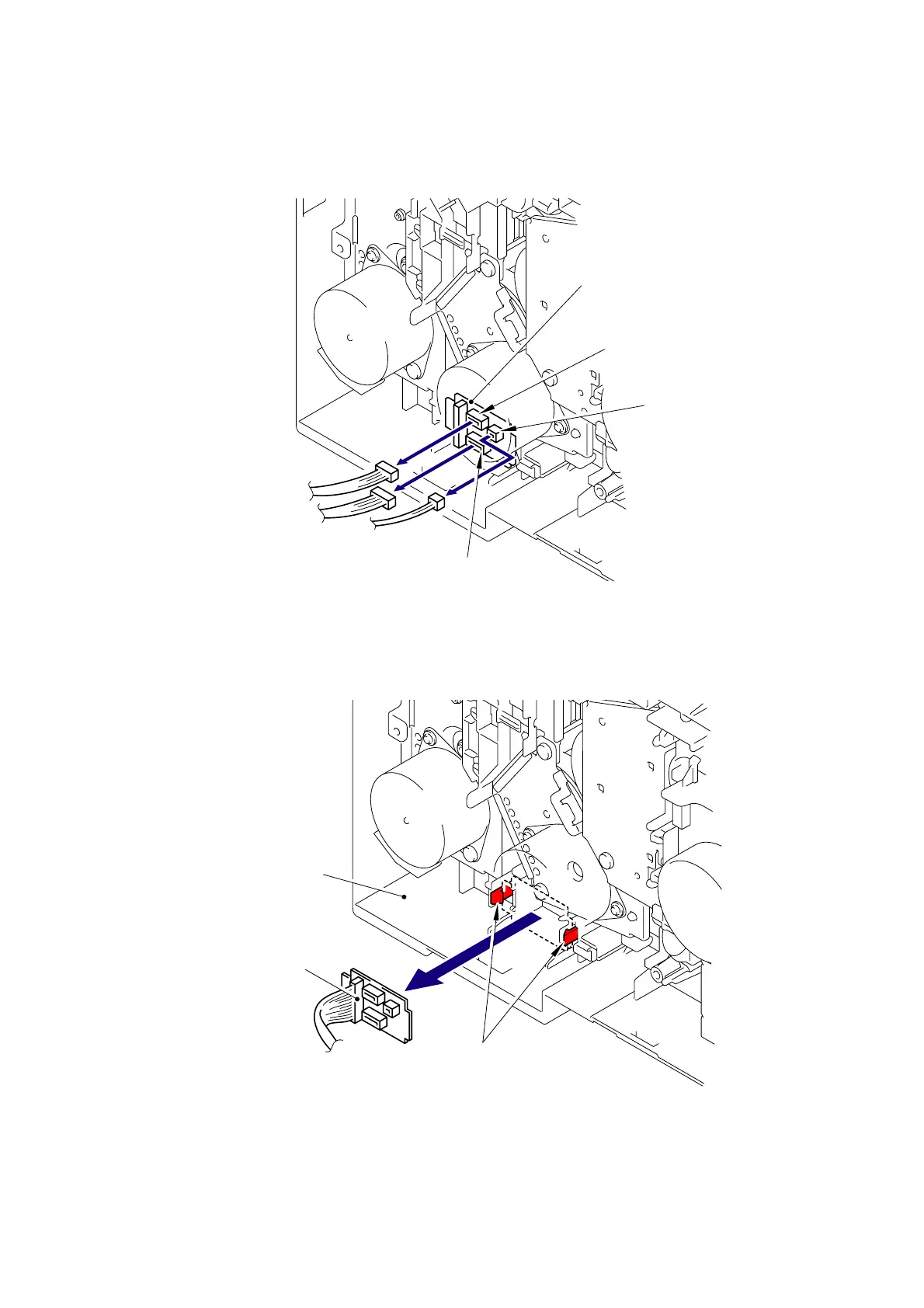

8.59 Registration Mark Relay PCB ASSY
(1)
Disconnect
the three Connectors (CN2, CN3, CN4) from the Registration mark relay PCB ASSY.
Fig. 5-165
(2) Release the two Hooks to remove the Registration mark relay PCB ASSY from the Side frame L.
Fig. 5-166
CN3
CN4
PCB ASSY
Registration mark relay
<Left side>
CN2
Hook
Side frame L
Registration mark
relay PCB ASSY
<Left side>
