5-117
Confidential
8.47 Paper Stack Lever ASSY
(1) Release the Pin to remove the Paper stack lever ASSY on the left side from the Inner
chute ASSY 1.
(2) Remove the Paper stack lever ASSY on the right side in the same way.

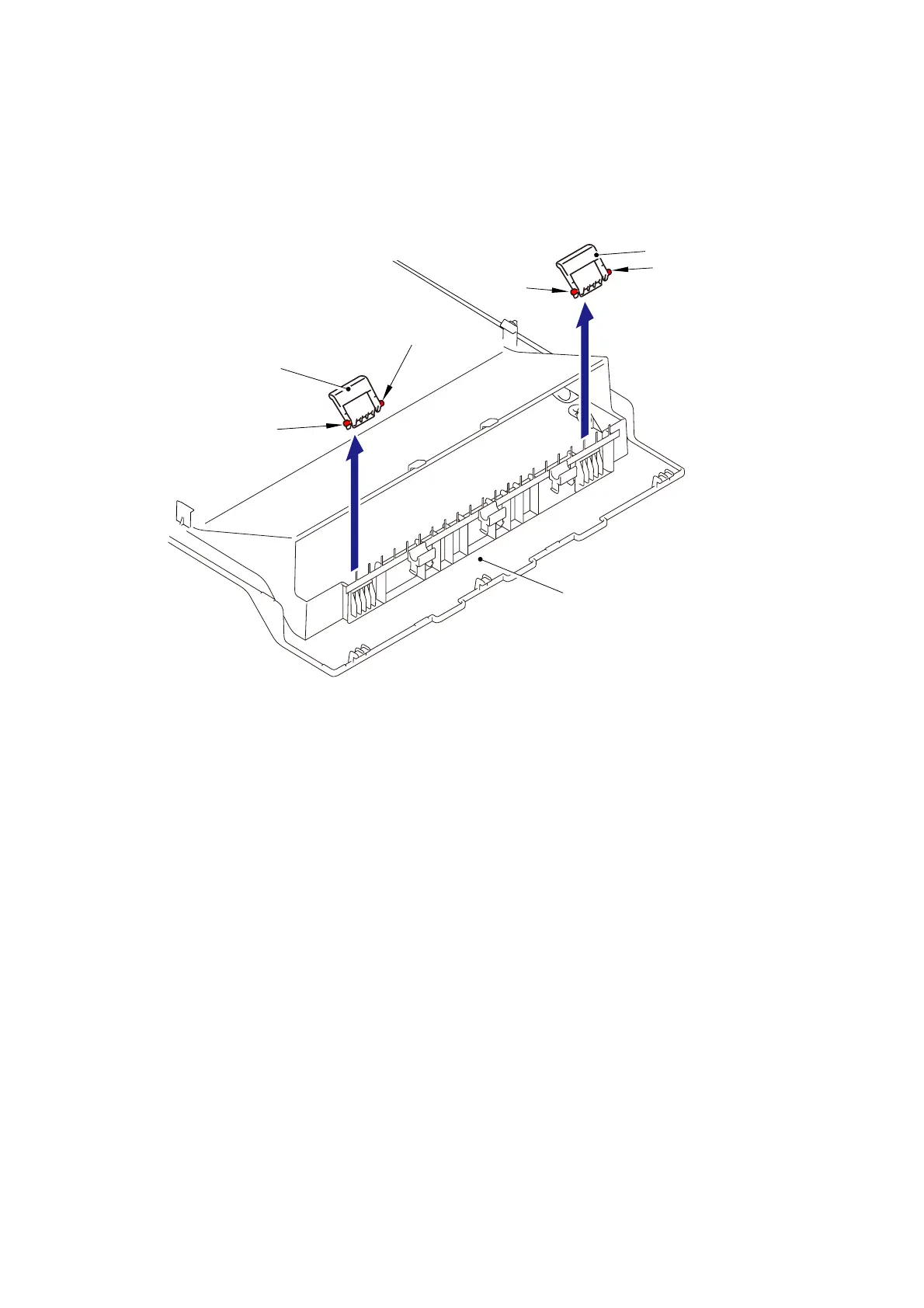

Fig. 5-133
Inner chute ASSY 1
Paper stack lever ASSY
Paper stack lever ASSY
Pin
Pin
Pin
Pin
