Brother MFC-9010CN Service Manual

5-158
Confidential

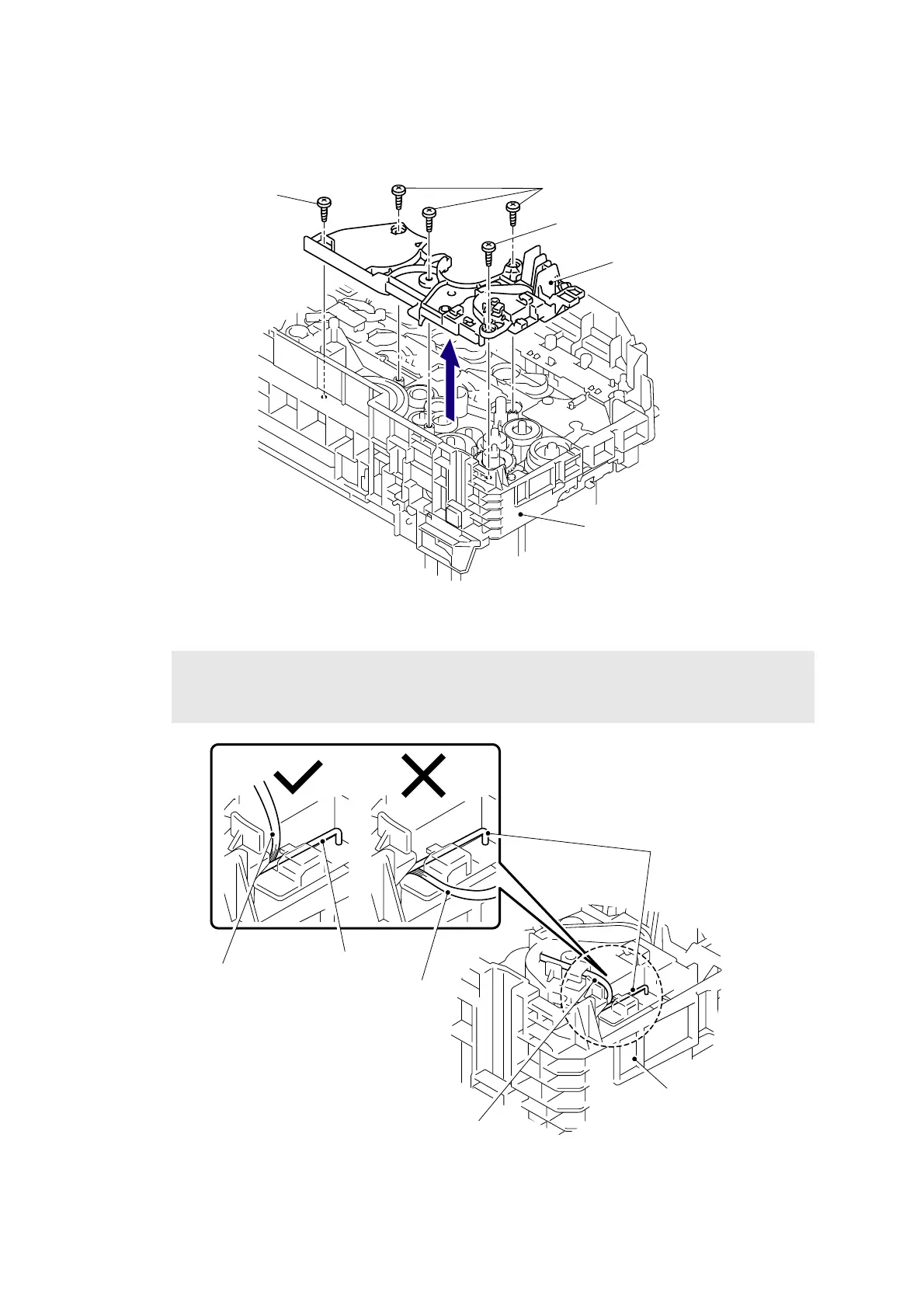

(3) Remove the five Taptite bind B M4x12 screws, and then remove the Cleaner PF gear
cover from the Side frame L.
Fig. 5-193
Fig. 5-194
Assembling Note:
When assembling the Cleaner PF gear cover, make sure to place the Pick-up sector gear
spring and PF registration solenoid harness correctly as shown in the figure below.
Taptite bind B M4x12
Side frame L
Cleaner PF gear cover
Taptite bind B M4x12
Taptite bind B M4x12
Pick-up sector gear spring
PF registration solenoid
Pick-up sector gear spring
PF registration solenoid
PF registration solenoid
harness
harness
Side frame L
harness
PF registration solenoid
