5-133
Confidential

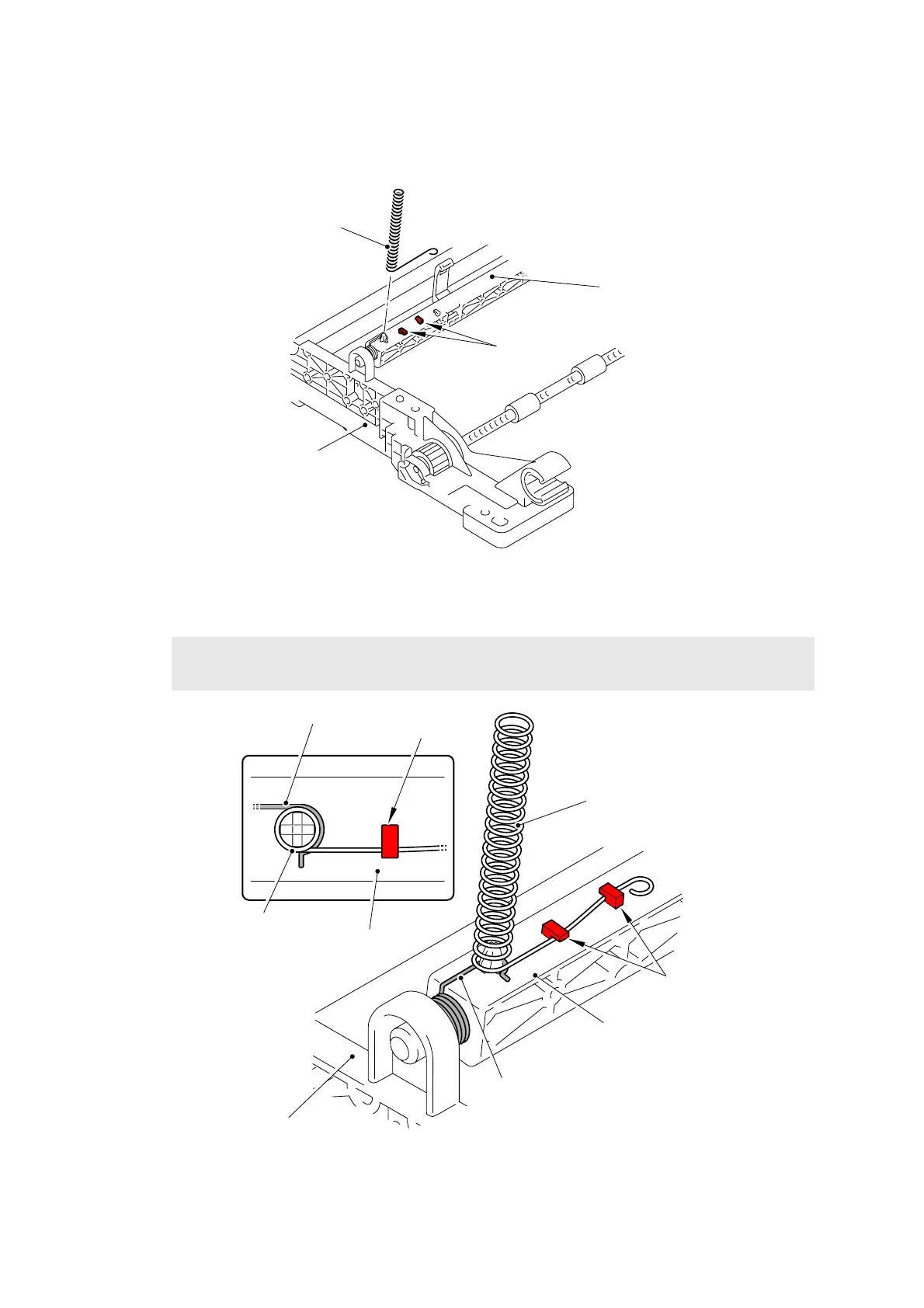

8.52 Z Spring L/Z Spring R
(1) Remove the Z spring L from the Holder of the Sub frame ASSY.
Fig. 5-151
Fig. 5-152
Assembling Note:
When mounting the Z spring L, make sure to assemble them as shown in the figure below.
Sub frame ASSY
Holder
Z spring L
Hook
Sub frame ASSY
Holder
Z spring L
Holder
Z spring L
Spring of the main body
Spring of the main body
HookHook
Hook
