Brother MFC-9010CN Service Manual

5-42
Confidential

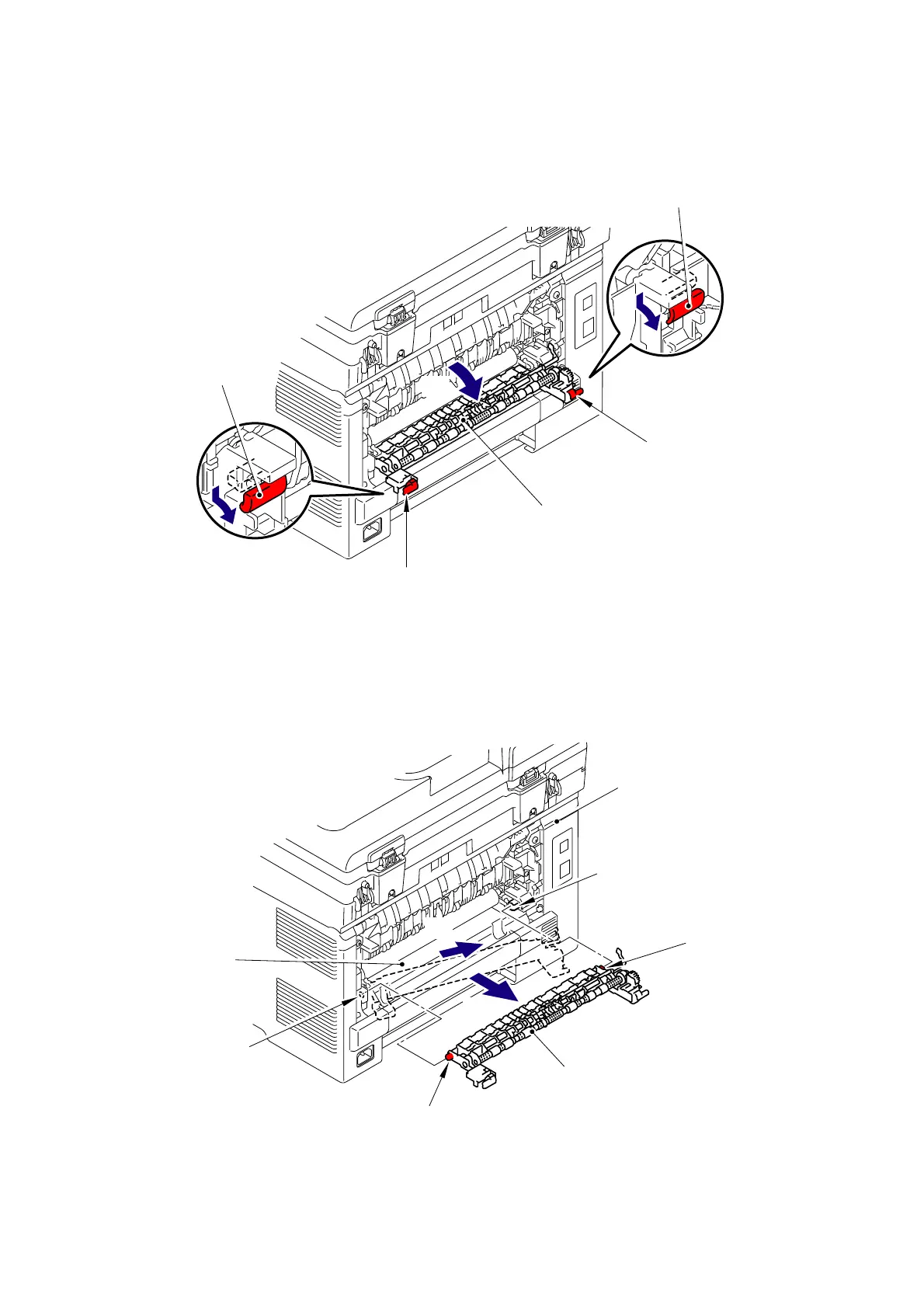

8.6 Fuser Cover
(1) Release of the Fuser cover lock lever L and R and open the Fuser cover.
Fig. 5-14
(2) Remove the left Shaft of the Fuser cover from the Notch on the Bush of the Side frame L.
(3) Remove the right Shaft of the Fuser cover from the Bush of the LVPS cover.
Fig. 5-15
Fuser cover lock lever L
Fuser cover
Fuser cover lock lever R
1a
1a
1b
<Back side>
Fuser cover lock lever L
Fuser cover lock lever R
Side frame L
Bush
Left shaft
LVPS cover
Notch on bush
Fuser cover
Right shaft
3a
3b
<Back side>
