5-178
Confidential
8.79 Drum Motor Origin Sensor PCB ASSY
(1) Remove the Taptite bind B M3x10 screw, and then remove the Drum motor origin sensor
PCB ASSY from the Side frame L.

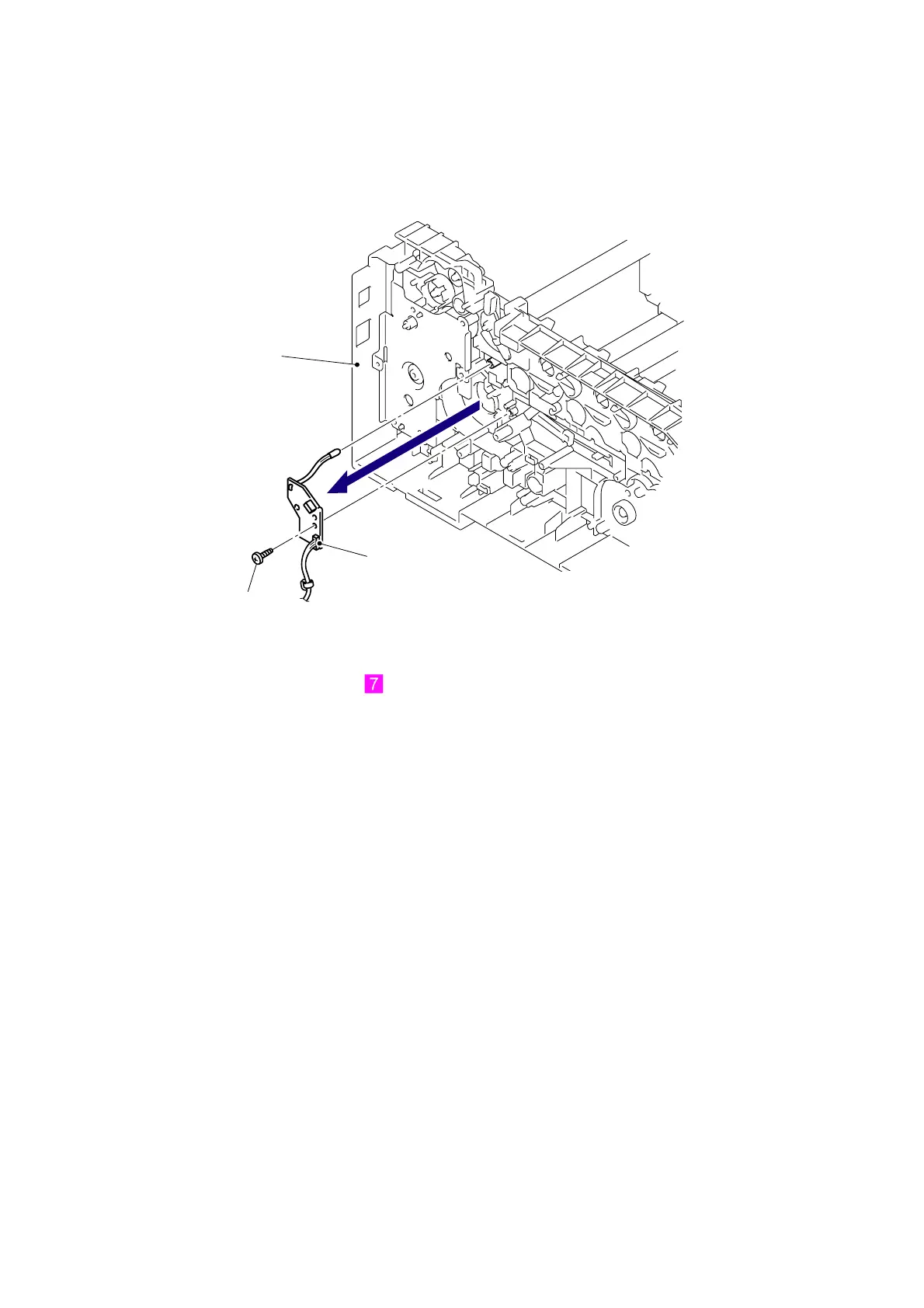

Fig. 5-226
Harness routing: Refer to “ Drum Motor Origin Sensor PCB ASSY.”
Taptite bind B M3x10
Side frame L
Drum motor origin
sensor PCB ASSY
<Left side>
