5-16
Confidential

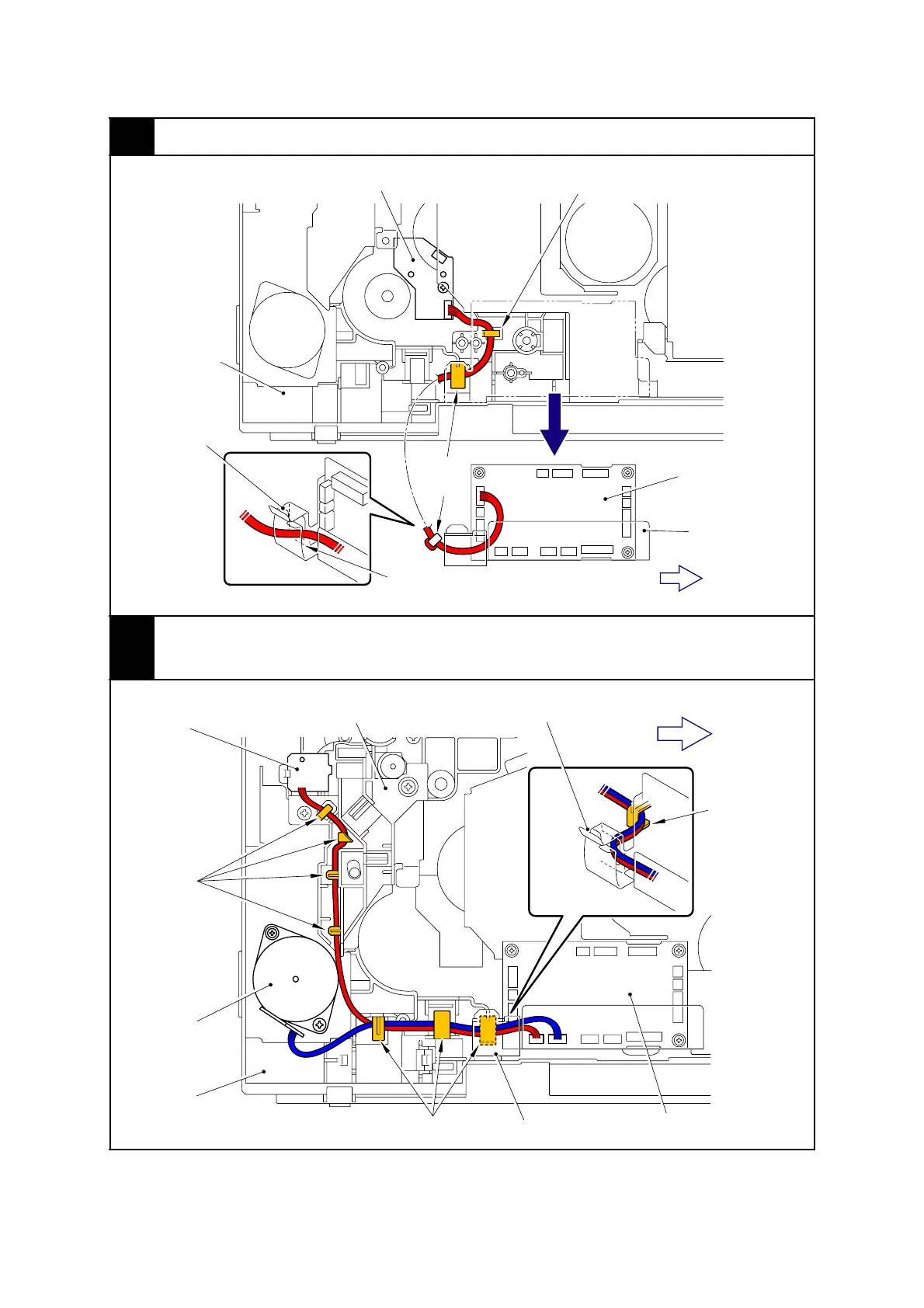

7 Drum Motor Origin Sensor PCB ASSY
8 Fuser/Eject Drive Motor, Fuser/Eject Drive Motor Sensor
PCB ASSY
Drum motor origin sensor PCB ASSY
Hook
Hole
Front
Side frame L
Engine insulation
sheet
Engine PCB ASSY
Engine insulation
sheet
Hook
Core
Front
Hook
Engine insulation sheet
Hook
Hook
Side frame L
Engine PCB ASSY
Engine insulation sheet
Eject gear cover
Fuser/eject drive motor
sensor PCB ASSY
Fuser/eject
drive motor
