5-209
Confidential

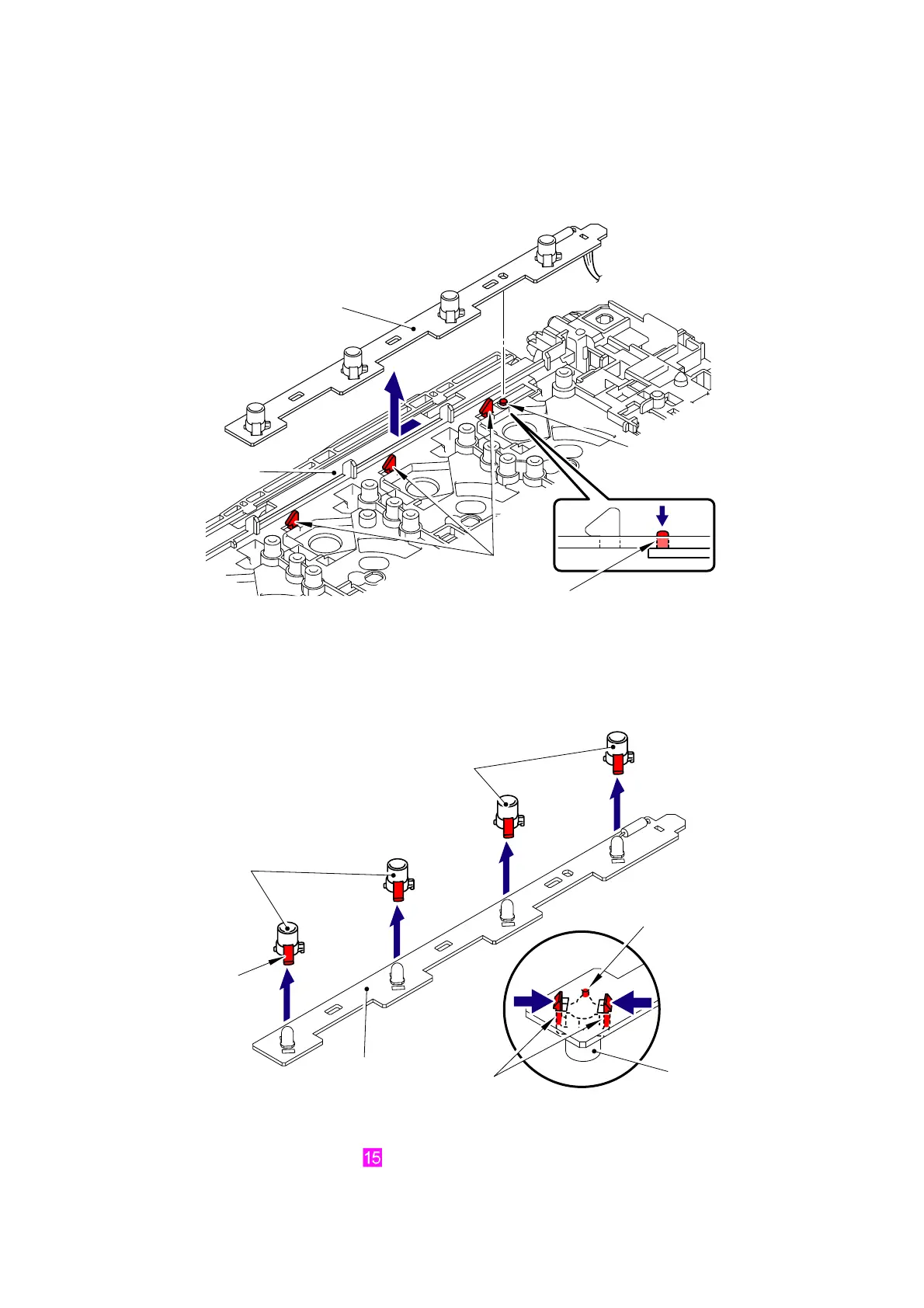

8.91 Toner LED PCB ASSY/LED Holder
(1) Press the Pin of the Side frame R, slide the Toner LED PCB ASSY in the direction of the
arrow 1b, and remove it.
Fig. 5-282
(2) Release the two Hooks to remove the four LED holder from the Toner LED PCB ASSY.
Fig. 5-283
Harness routing: Refer to “ Develop Release Sensor PCB ASSY, Top Cover Open Switch,
Toner LED PCB ASSY.”
Side frame R
Pin
Toner LED PCB ASSY
Hook
Pin
1a
1b
LED holder
Hook
Toner LED PCB ASSY
LED holder
Hook
Hook
LED holder
