5-208
Confidential
(5) Remove the Lock arm from the Side frame R.

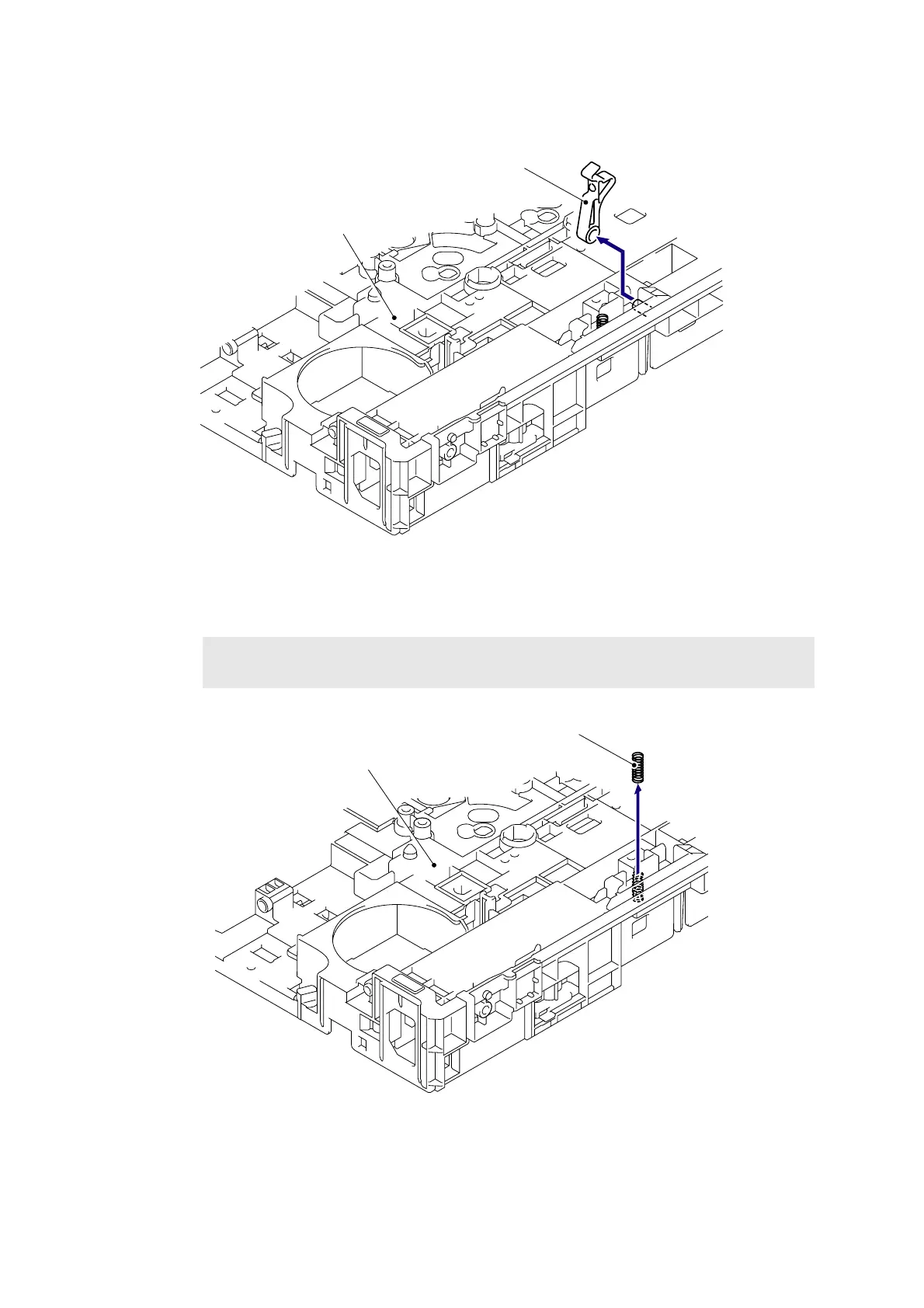

Fig. 5-280
(6) Remove the Cassette lock spring from the Side frame R.
Fig. 5-281
Note:
Be careful not to lose the Cassette lock spring.
Side frame R
Lock arm
Side frame R
Cassette lock spring
