8.83 Registration Sensor Holder ASSY

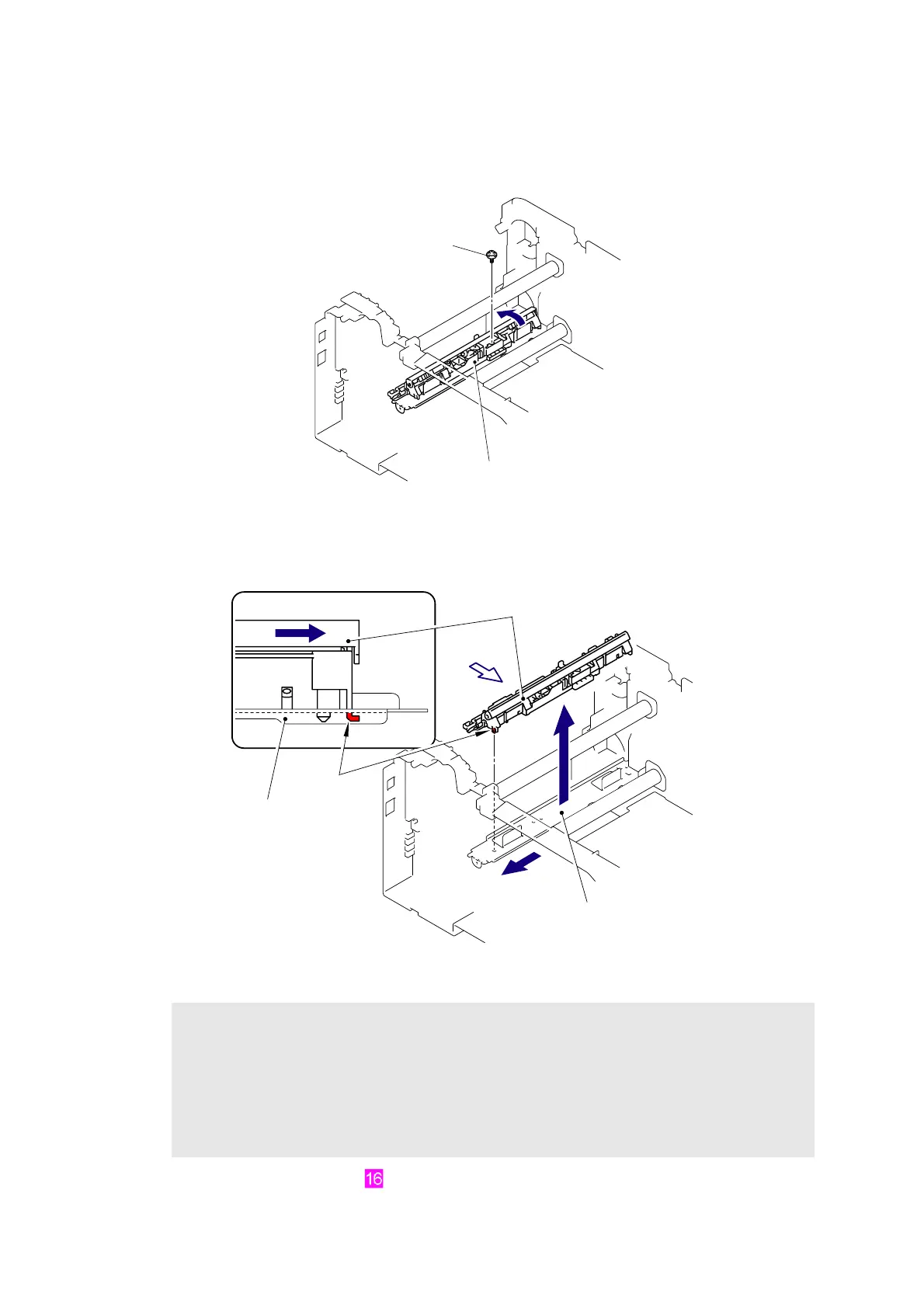

(1) Remove the Taptite cup S M3x6 SR screw from the Registration sensor holder ASSY.
Fig. 5-244
(2) Wire the harness and release the Hook. Slide the Registration sensor holder ASSY in the
direction of the arrow 2a, and remove it from the Registration sensor plate.
Fig. 5-245
Harness routing: Refer to “ Registration Sensor Holder ASSY.”
Assembling Note:
- Be careful not to place the harness between the Registration sensor holder ASSY and the
Registration sensor plate when assembling the Registration sensor holder ASSY to the
Registration sensor plate.
- A reinforcement plate for transportation is assembled to the Registration sensor holder
ASSY (service part). Remove the reinforcement plate for transportation from the
Registration sensor holder ASSY before assembling.
Registration sensor holder ASSY
Taptite cup S M3x6 SR
<Right side>
<Left side>
Hook
Registration sensor plate
Registration sensor holder ASSY
2b
2a
<A view>
A view
Registration sensor plate
<Right side>
<Left side>
2a
