Brother MFC-9010CN Service Manual

2-3
Confidential
3. MECHANICS

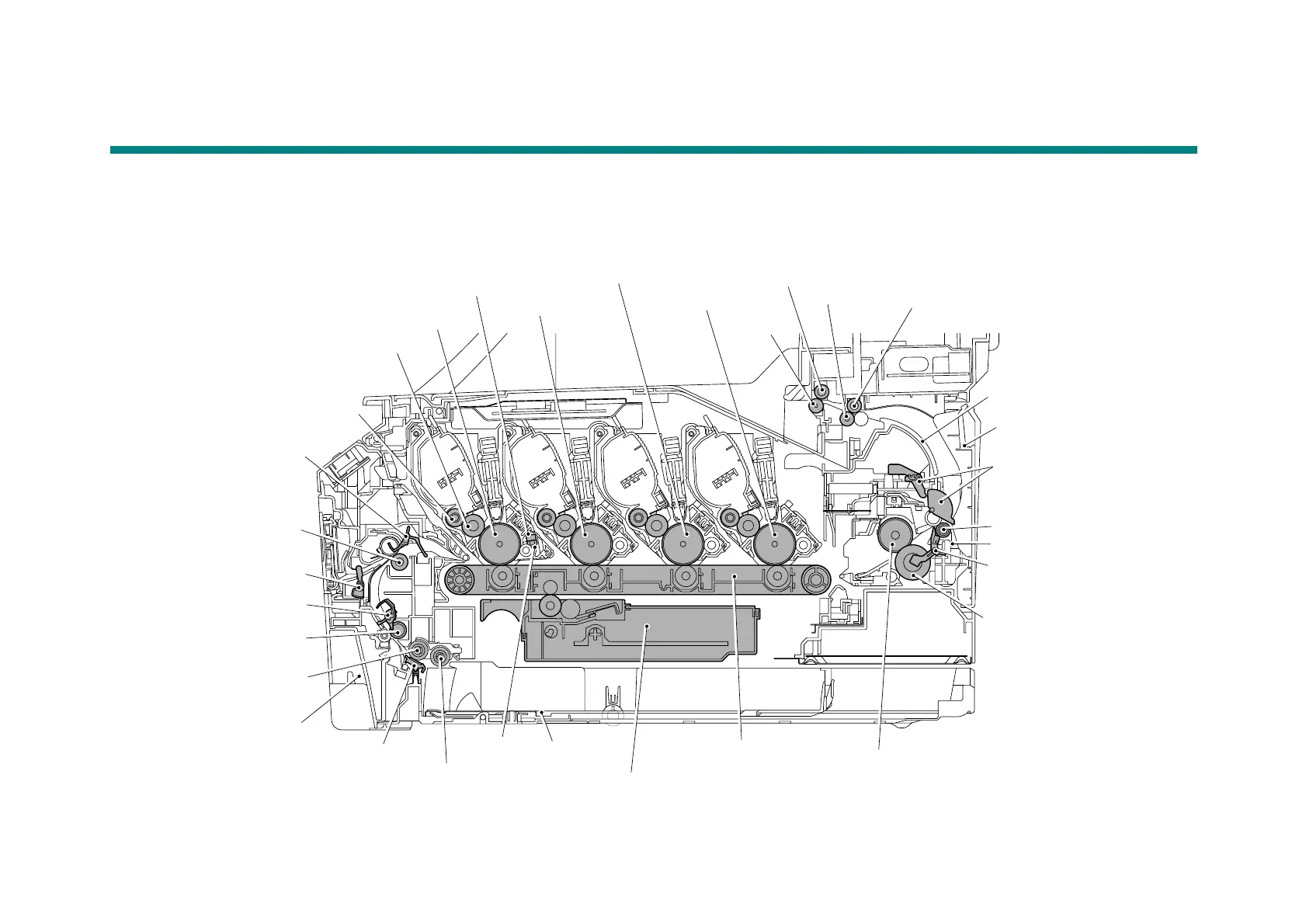

3.1 Cross-section Drawing
■ Printer part
Fig. 2-3
Exit roller 2
Paper eject guide
Back cover
Fuser cover
Paper eject rear actuator
Paper eject front actuator
Exit roller 1
Pressure roller ASSY
Heat roller
Belt unit
Waste toner box
Plate
Paper pick-up roller
Separation roller
Paper tray
Feed roller
Registration front actuator
Manual paper actuator
PF registration roller
Registration rear actuator
Supply roller
Cleaner shaft
Exposure drum (Y)
Separation pad ASSY
Exposure drum (M)
Cleaner sponge
Exposure drum (K)
Develop roller
Exposure drum (C)
Pinch roller
Pinch roller 2
Exit roller
<Front> <Back side>
