Brother MFC-9010CN Service Manual

5-150
Confidential

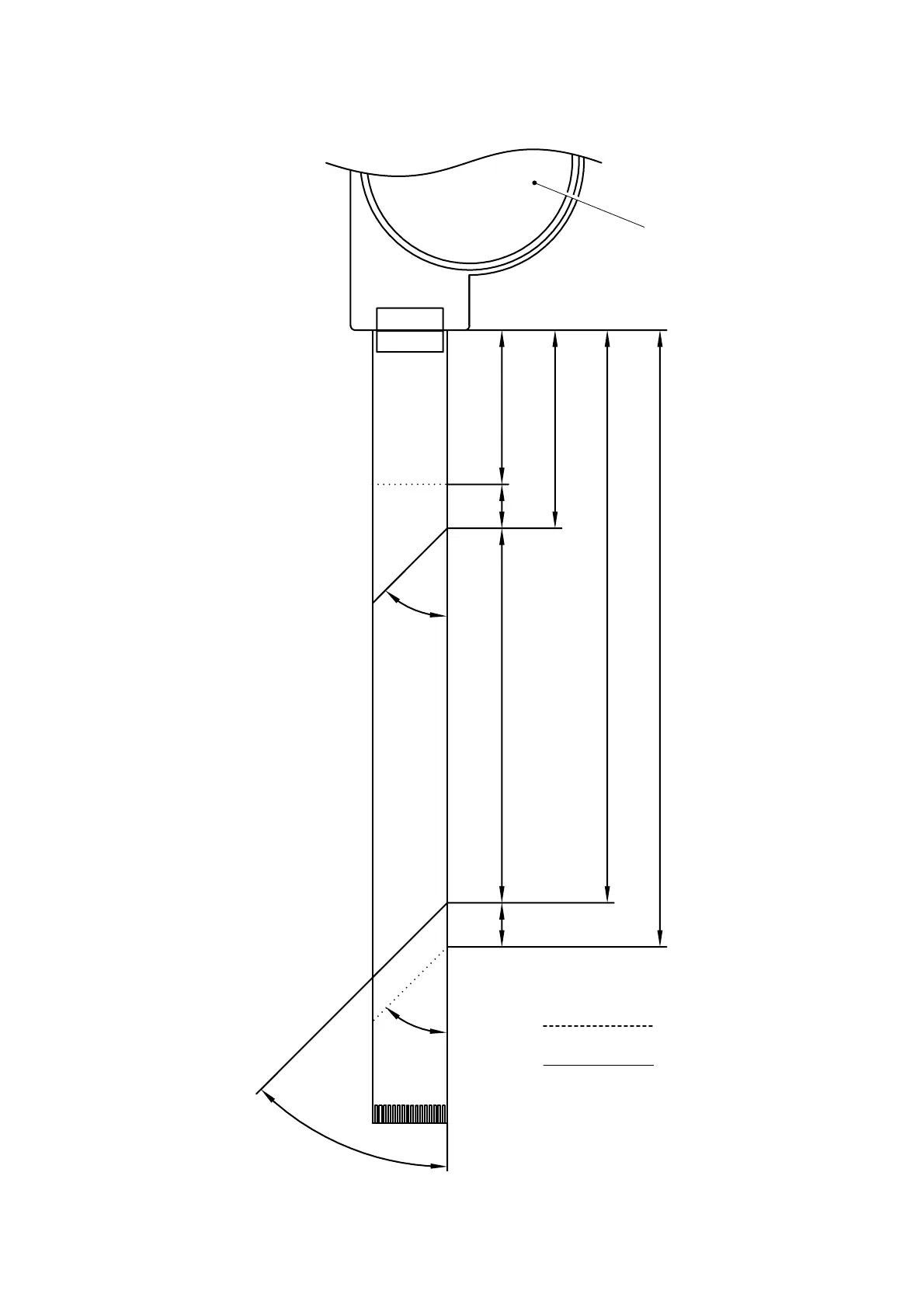

<How to Fold FFC of Paper Feed Motor ASSY> (full-scale)
Fig. 5-179
35 mm
10 mm
10 mm
45°
45°
45°
85 mm
130 mm
Paper feed motor ASSY
140 mm
Fold down FFC along with the solid line
Fold up FFC along with the dotted line
35 mm 45 mm
