(2) Remove the two Taptite bind B M4x12 screws from the Side cover L ASSY.
(3) Release the two Hooks and two Bosses on the upper side and four Hooks on the bottom,
and then remove the Side cover L ASSY from the Main body.

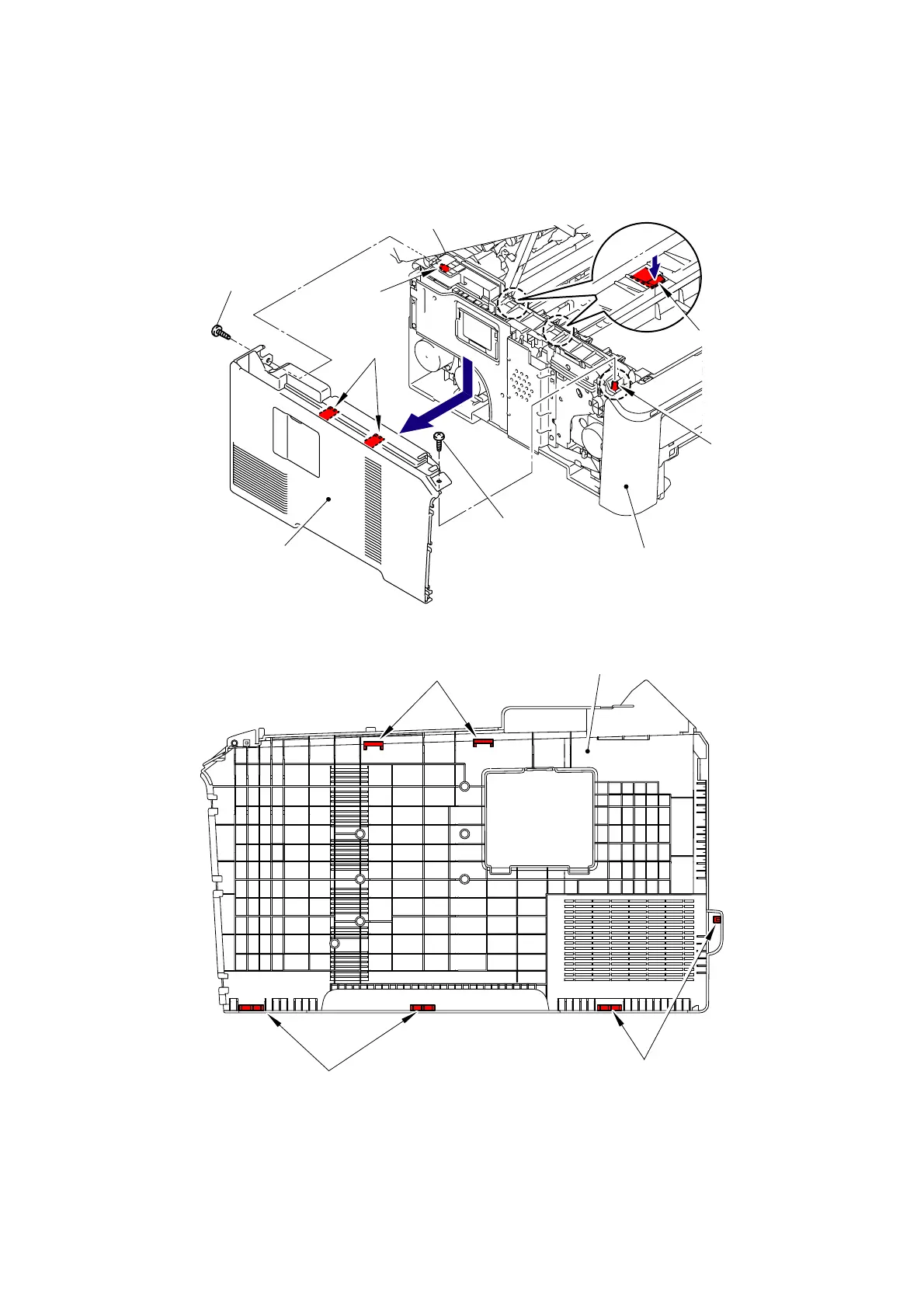

Fig. 5-28
Taptite bind B M4x12
Hook
Boss
Main body
Side cover L ASSY
Taptite bind B M4x12
Boss
Hook
3a
3b
<Left side>
Side cover L ASSY
Hook
Hook
Hook
* Inside of Side cover L ASSY
