Brother MFC-9010CN Service Manual

5-161
Confidential

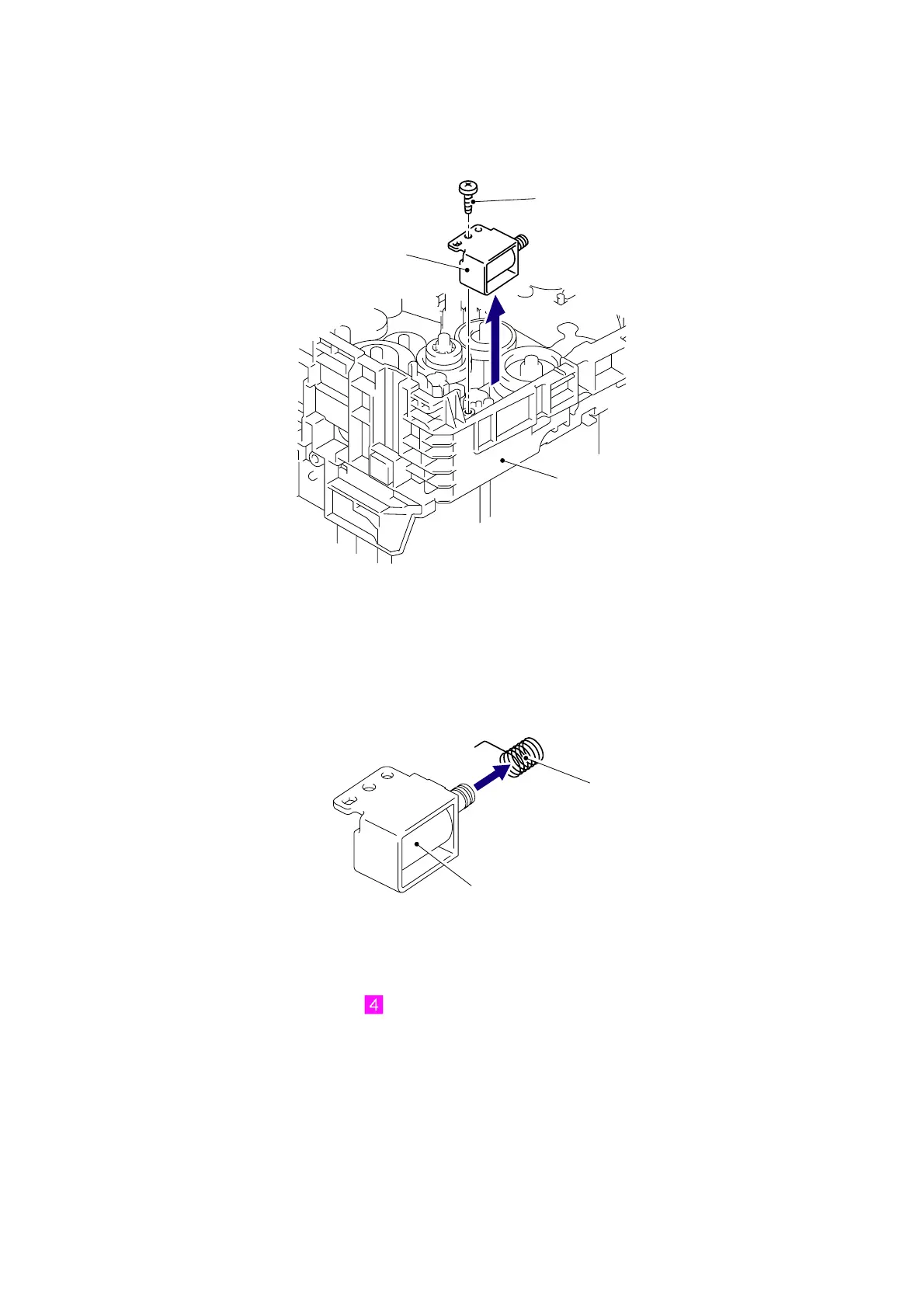

(2) Remove the Taptite bind B M3x10 screw, and then remove the PF registration solenoid
from the Side frame L.
Fig. 5-199
(3) Remove the Registration solenoid spring from the PF registration solenoid.
Fig. 5-200
Harness routing: Refer to “ PF Registration Solenoid, Pick-up Solenoid.”
Taptite bind B M3x10
Side frame L
PF registration solenoid
PF registration solenoid
Registration solenoid spring
