5-59
Confidential
(3) Open the ADF unit and lift it slightly, insert the Ferrite core of the ADF harness unit into
the hole of the Document scanner unit, and remove the ADF unit.

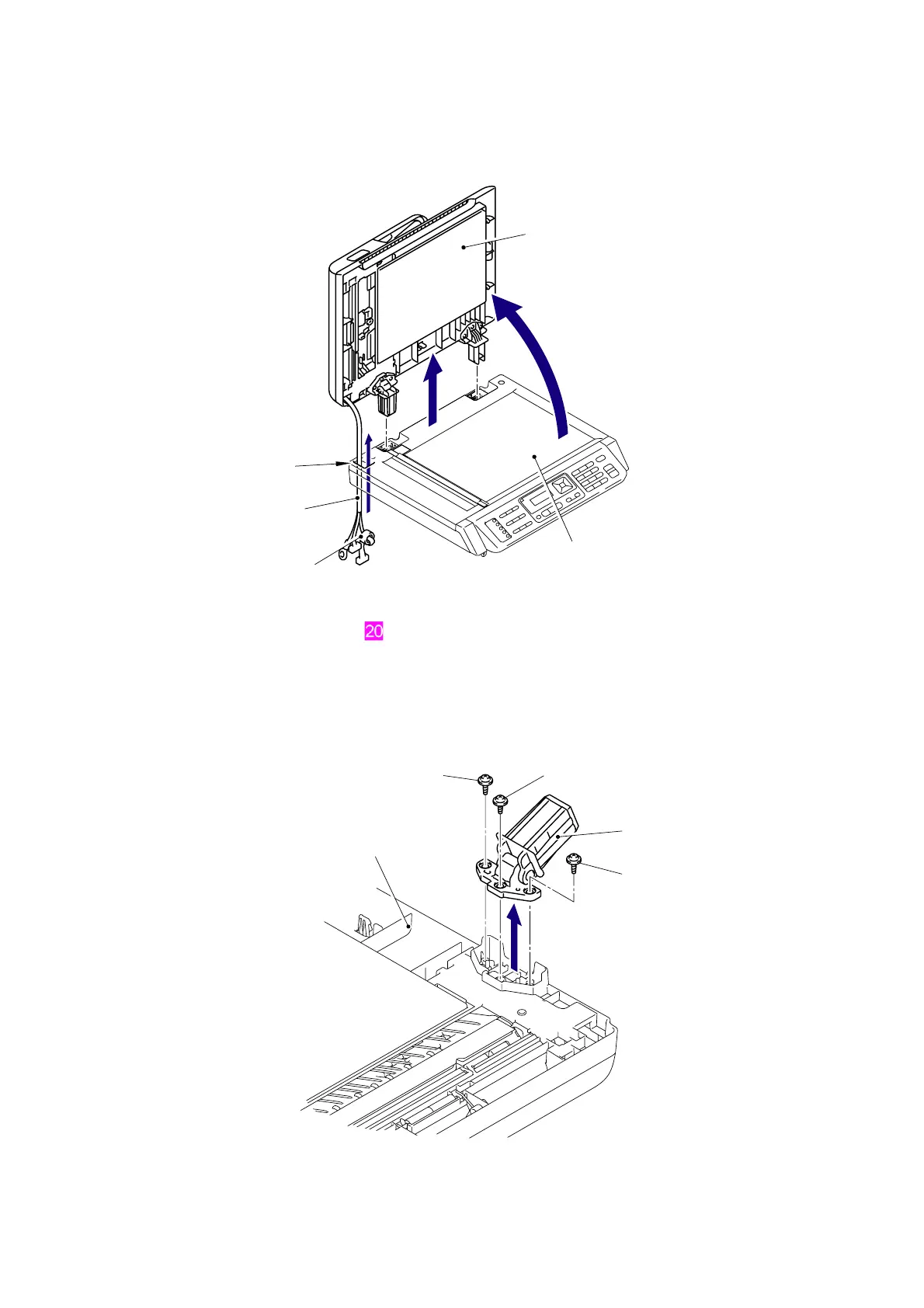

Fig. 5-41
Harness routing: Refer to ADF Unit.”
(4) Turn the ADF unit upside down.
(5) Remove the two Taptite cup B M3x10 screws and one Taptite cup S M3x12 screw, and
then remove the Hinge ASSY L from the ADF unit.
Fig. 5-42
ADF unit
ADF harness unit
Ferrite core
Document scanner unit
Hole
3a
3b
Taptite cup B M3x10
Hinge ASSY L
ADF unit
Taptite cup B M3x10
Taptite cup S M3x12
