5-95
Confidential

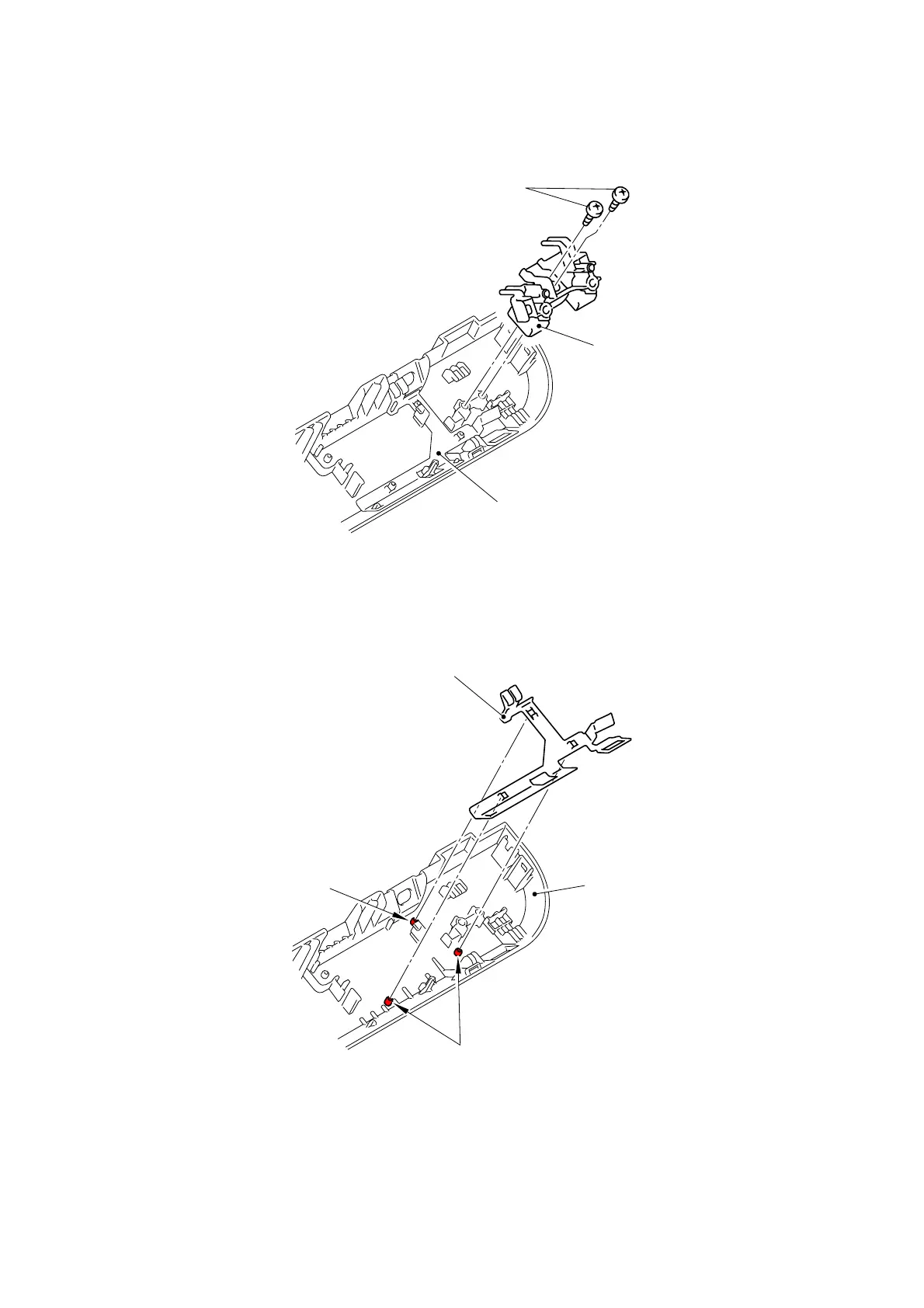

(4) Remove the two Taptite bind B M3x8 screws, and then remove the USB holder from the
Front cover top ASSY.
Fig. 5-96
(5) Remove the Panel ground plate from the Front cover top ASSY.
Fig. 5-97
Taptite bind B M3x8
USB holder
Front cover top ASSY
Panel ground plate
Front cover top ASSY
Boss
Boss
